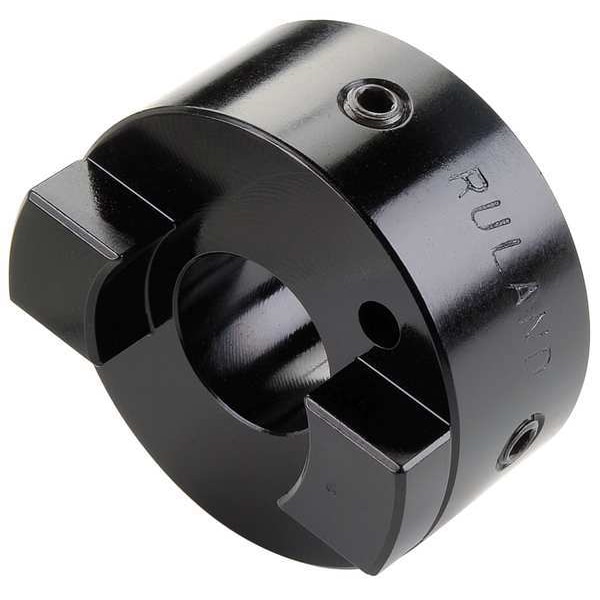

Coupling Hub, Oldham Set Screw, 11mm
Mfr # MOST41-11-A
Zoro # G7921383
product price: $23.59
/eaKey Features
Shaft Locking Type - Couplings
1 Piece Set Screw
System of Measurement
Metric
Outside Dia.
41.3 mm
With Keyway / Without Keyway
Without Keyway
Finish
Black Anodized
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MOST41-11-A
Zoro #
G7921383
UPC #
634529208144
Country of Origin
United States
Dimensions
Bore Dia.
11 mm
Outside Dia.
41.3 mm
Length through Bore (In.)
0.71 in
Size
MOST41
Clearance Dia. (In.)
1.625 in
Length through Bore (mm)
18 mm
Clearance Dia. (mm)
41.3 mm
Screw Size (mm)
M5
Overall Length (mm)
18 mm
Assembled Coupling Length
50.8 mm
Overall Length (In.)
0.71 in
Length through Bore
18 mm
Screw Thread Size
M5
Outside Diameter
41.3 mm
Coupling Overall Length
50.8 mm
Bore Diameter
11 mm
Coupling Size
MOST41
Description
Motion Control Coupling Hub, Angular Misalignment 0.5 Degrees , Axial Motion 0.15 mm, Coupling Size MOST41, Outside Diameter 41.3 mm, Over-Standard Parallel Misalignment 4.13 mm, Parallel Misalignment 0.25 mm, Coupling Overall Length 50.8 mm, Hub Material Aluminum, Length through Bore 18 mm, System of Measurement Metric, Bore Diameter 11 mm, Maximum Speed 4,500 RPM, Bore Type Round, Shaft Locking Type Set Screw, Keyway Depth Not Applicable, Keyway Width Not Applicable, Screw Seating Torque 4 N-m
