  11. Coupling, One Piece, Bore Dia 8 mm

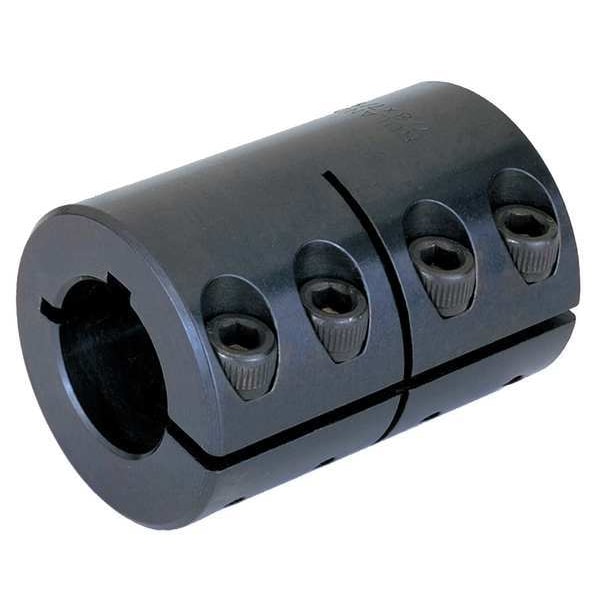

Ruland Coupling, One Piece, Bore Dia 8 mm MCLC-8-8-F - main

Coupling, One Piece, Bore Dia 8 mm

  • Mfr # MCLC-8-8-F

  • Zoro # G1378027

product price: $36.89
/ea

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Metric
Bore Dia.
8 mm
Material - Couplings
1215 Lead Free Steel
Outside Dia.
24 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MCLC-8-8-F
Zoro #
G1378027
UPC #
634529013380
Country of Origin
United States

Dimensions

Bore Dia.
8 mm
Outside Dia.
24 mm
Overall Length
35 mm
Keyway Width
2 mm
Clearance Dia.
27.1 mm
Screw Size (mm)
M3
Keyway Width (mm)
2
Screw Size
M3
Clearance Dia. (mm)
27.10
Bore Diameter 2
8 mm
Keyway Width 1
2 mm
Screw Thread Size
M3
Coupling Outside Diameter
24 mm
Keyway Depth 2
1.1 mm
Minimum Bore Diameter
8 mm
Different Bore Sizes
No
Keyway Width 2
2 mm
Keyway Depth 1
1.1 mm
Clearance Diameter
27.1 mm
Bore Diameter 1
8 mm
Maximum Bore Diameter
8 mm

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Metric
Material - Couplings
1215 Lead Free Steel
With Keyway / Without Keyway
With Keyway
Finish
black oxide
Max. Torque
275 in-lb
Machined From
Bar Stock
Design
Four Vibration Resistant Socket Capscrews
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Material
Black Oxide 1215 Lead Free Steel
Provides
Extra Holding Power for Higher Load Applications without Marring Shafts
Max. Torque (In.-Lbs.)
275
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Type
One Piece Clamp Type, with Keyway
Standards
Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050 mm / +0.012 mm
Screw Material
Alloy Steel
Shaft Tolerance
+0.000 mm / -0.013 mm
Screw Location from Center
9 mm
Number of Locking Screws
4
Coupling Construction
One-Piece
Minimum Operating Temperature
-40 Degrees C
Screw Material Finish
Black Oxide
Maximum Torque
50 N-m
Shaft Locking Type
Clamp On
Coupling Material Grade
1215
Bore Type
Round Keyed
Features
Precision Honed Bores, Vibration-Resistant Screws
Zero Backlash
Yes
Maximum Speed
4,000 RPM
Maximum Operating Temperature
176 Degrees C
Included Screws
(4) Clamp Screws
Coupling Material
Carbon Steel
Fastener Tightening Torque
2.1 N-m
Resistance Properties
Corrosion Resistant
Coupling Material Finish
Black Oxide

Description

Rigid Shaft Coupling, Bore Diameter 1 8 mm, Bore Diameter 2 8 mm, Bore Type Round Keyed, Clearance Diameter 27.1 mm, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 24 mm, Different Bore Sizes No, Keyway Depth 1 1.1 mm, Keyway Depth 2 1.1 mm, Minimum Bore Diameter 8 mm, Keyway Width 1 2 mm, Keyway Width 2 2 mm, Maximum Bore Diameter 8 mm, Maximum Speed 4,000 RPM, Maximum Torque 50 N-m, Overall Length 35 mm, Shaft Locking Type Clamp On
