  11. Coupling, Two Piece, Bore Dia 3/4 In

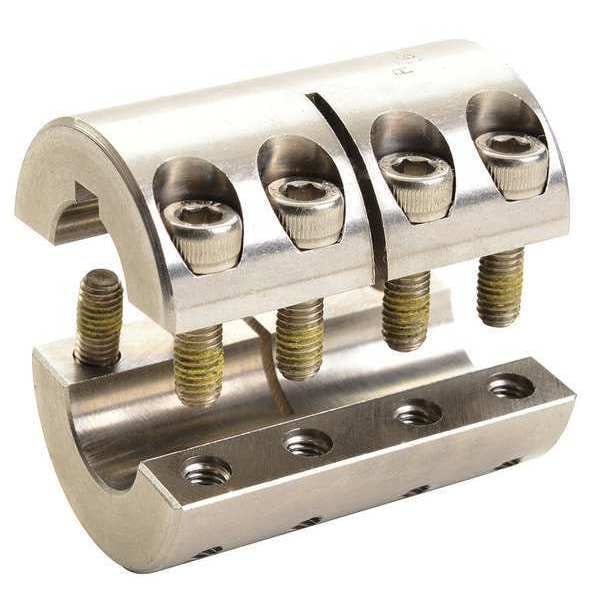

Ruland Coupling, Two Piece, Bore Dia 3/4 In SPC-12-12-SS - main

Coupling, Two Piece, Bore Dia 3/4 In

  • Mfr # SPC-12-12-SS

  • Zoro # G0475666

product price: $188.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type - Couplings
2 Piece Clamp
System of Measurement
Inch
Material - Couplings
Stainless Steel
Outside Dia.
1 1/2 in
Overall Length
2 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPC-12-12-SS
Zoro #
G0475666
UPC #
634529022276
Country of Origin
United States

Dimensions

Bore Dia.
3/4 in
Outside Dia.
1 1/2 in
Overall Length
2 1/4 in
Screw Size
1/4"-28
Clearance Dia. (In.)
1.842
Keyway Width (In.)
3/16
Keyway Width
3/16 in
Clearance Dia.
1.842 in
Screw Size (In.)
1/4-28
Keyway Width 1
3/16 in
Keyway Depth 2
3/32 in
Coupling Outside Diameter
1 1/2 in
Clearance Diameter
1.84 in
Minimum Bore Diameter
3/4 in
Keyway Depth 1
3/32 in
Different Bore Sizes
No
Bore Diameter 1
3/4 in
Maximum Bore Diameter
3/4 in
Bore Diameter 2
3/4 in
Keyway Width 2
3/16 in
Screw Thread Size
1/4"-28

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
2 Piece Clamp
System of Measurement
Inch
Material - Couplings
Stainless Steel
With Keyway / Without Keyway
With Keyway
Finish
Bright
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Max. Torque (In.-Lbs.)
950
Standards
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Type
Two Piece Clamp Type, with Keyway
Max. Torque
950 in-lb
Material
Stainless Steel
Provides
Extra Holding Power for Higher Load Applications without Marring Shafts
Design
Four Vibration Resistant Socket Capscrews
Machined From
Bar Stock
Bore Tolerance
+0.0020 in / +0.0005 in
Screw Material
Stainless Steel
Maximum Speed
4,000 RPM
Shaft Locking Type
Clamp On
Coupling Material
Stainless Steel
Coupling Material Grade
303
Included Screws
(8) Clamp Screws
Recommended Gap
0.094 in
Resistance Properties
Corrosion Resistant
Coupling Construction
Two-Piece
Maximum Operating Temperature
350 Degrees F
Maximum Torque
950 in-lb
Bore Type
Round Keyed
Screw Material Grade
18-8 300 Series
Coupling Material Finish
Bright
Number of Locking Screws
8
Zero Backlash
Yes
Minimum Operating Temperature
-40 Degrees F
Shaft Tolerance
+0.0000 in / -0.0005 in
Screw Material Finish
Bright
Screw Location from Center
0.545 in
Features
Precision Honed Bores, Vibration-Resistant Screws
Fastener Tightening Torque
110 lb-in

Description

Rigid Shaft Coupling, Bore Diameter 1 3/4 in, Bore Diameter 2 3/4 in, Bore Type Round Keyed, Clearance Diameter 1.84 in, Coupling Construction Two-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 1 1/2 in, Different Bore Sizes No, Keyway Depth 1 3/32 in, Keyway Depth 2 3/32 in, Minimum Bore Diameter 3/4 in, Keyway Width 1 3/16 in, Keyway Width 2 3/16 in, Maximum Bore Diameter 3/4 in, Maximum Speed 4,000 RPM, Maximum Torque 950 in-lb, Overall Length 2 1/4 in

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
