  11. Coupling, Two Piece, Bore Dia 3/4 x 5/8 In

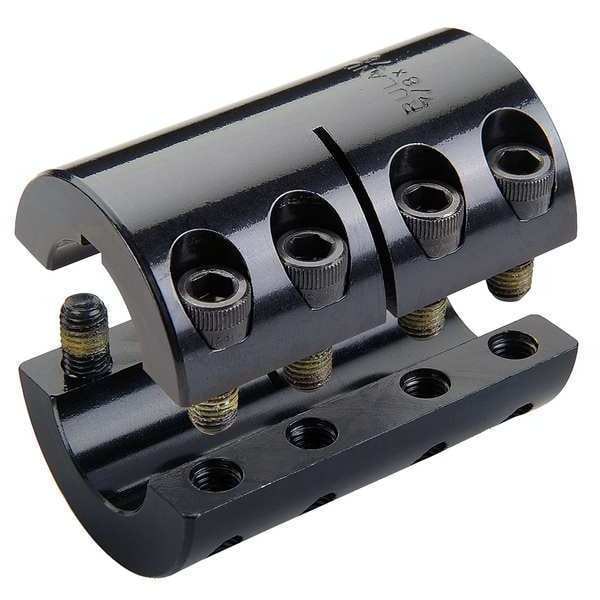

Ruland Coupling, Two Piece, Bore Dia 3/4 x 5/8 In SPC-12-10-F - main

Coupling, Two Piece, Bore Dia 3/4 x 5/8 In

  • Mfr # SPC-12-10-F

  • Zoro # G1350431

product price: $146.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type - Couplings
2 Piece Clamp
System of Measurement
Inch
Bore Dia.
5/8 in x 3/4 in
Material - Couplings
Steel
Outside Dia.
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SPC-12-10-F
Zoro #
G1350431
UPC #
634529022245
Country of Origin
United States

Dimensions

Bore Dia.
5/8 in x 3/4 in
Outside Dia.
1 1/2 in
Overall Length
2 1/4 in
Screw Size (In.)
1/4-28
Keyway Width (In.)
3/16 x 3/16
Keyway Width
3/16 in
Screw Size
1/4"-28
Screw Thread Size
1/4"-28
Coupling Outside Diameter
1 1/2 in
Keyway Width 1
3/16 in
Keyway Width 2
3/16 in
Different Bore Sizes
Yes
Minimum Bore Diameter
5/8 in
Bore Diameter 1
3/4 in
Bore Diameter 2
5/8 in
Keyway Depth 1
3/32 in
Keyway Depth 2
3/32 in
Clearance Diameter
1.84 in
Maximum Bore Diameter
3/4 in

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
2 Piece Clamp
System of Measurement
Inch
Material - Couplings
Steel
With Keyway / Without Keyway
With Keyway
Finish
black oxide
Max. Torque
3,200 in-lb
Standards
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Max. Torque (In.-Lbs.)
3200
Machined From
Bar Stock
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Material
Black Oxide Steel
Application
For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque
Provides
Extra Holding Power for Higher Load Applications without Marring Shafts
Type
Two Piece Clamp Type, with Keyway
Design
Four Vibration Resistant Socket Capscrews
Screw Material
Alloy Steel
Bore Tolerance
+0.0020 in / +0.0005 in
Recommended Gap
0.094 in
Fastener Tightening Torque
170 lb-in
Shaft Tolerance
+0.0000 in / -0.0005 in
Bore Type
Round Keyed
Coupling Construction
Two-Piece
Maximum Operating Temperature
350 Degrees F
Resistance Properties
Corrosion Resistant
Minimum Operating Temperature
-40 Degrees F
Coupling Material Grade
1215
Coupling Material
Carbon Steel
Maximum Speed
4,000 RPM
Coupling Material Finish
Black Oxide
Shaft Locking Type
Clamp On
Zero Backlash
Yes
Screw Material Finish
Black Oxide
Number of Locking Screws
8
Features
Precision Honed Bores, Vibration-Resistant Screws
Screw Location from Center
0.545 in
Included Screws
(8) Clamp Screws
Maximum Torque
3,200 in-lb

Description

Rigid Shaft Coupling, Bore Diameter 1 3/4 in, Bore Diameter 2 5/8 in, Bore Type Round Keyed, Clearance Diameter 1.84 in, Coupling Construction Two-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 1 1/2 in, Different Bore Sizes Yes, Keyway Depth 1 3/32 in, Keyway Depth 2 3/32 in, Minimum Bore Diameter 5/8 in, Keyway Width 1 3/16 in, Keyway Width 2 3/16 in, Maximum Bore Diameter 3/4 in, Maximum Speed 4,000 RPM, Maximum Torque 3,200 in-lb, Overall Length 2 1/4 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
