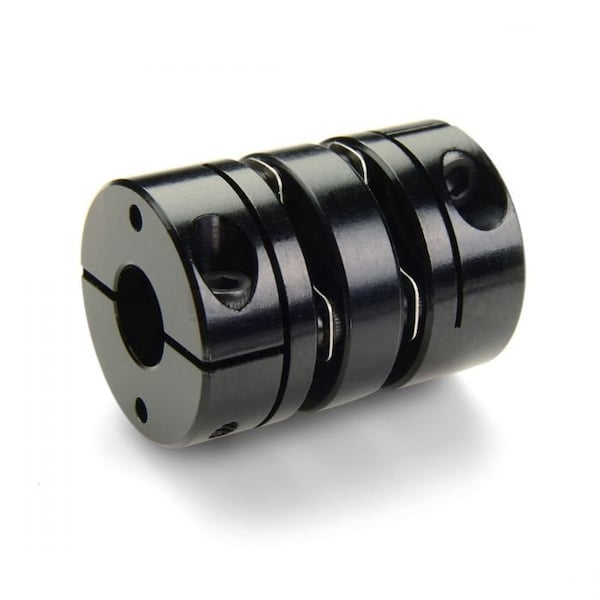

Ruland Disc Coupling DCD44-1 1/2"-35MM-A - main

Disc Coupling

  • Mfr # DCD44-1 1/2"-35MM-A

  • Zoro # G208677094

product price: $182.99
/ea
Free Shipping & Returns

Key Features

Overall Length
3 17/32 in
Axial Motion
0.03 in
Bore Tolerance
+0.001/-0.000 in
Dynamic Torque Reversing
212.5 in-lb
Screw Material
Alloy Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCD44-1 1/2"-35MM-A
Zoro #
G208677094
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
3 17/32 in
Different Bore Sizes
Yes
Bore Diameter 2
35 mm
Minimum Bore Diameter
35 mm
Maximum Bore Diameter
1 1/2 in
Bore Diameter 1
1 1/2 in
Coupling Outside Diameter
2 3/4 in
Screw Thread Size
M8
Screw Length
20 mm
Length Through Bore 2
1.7 in
Hub Length
1.2 in
Clearance Diameter
2.8 in
Length Through Bore 1
1.2 in

Details

Axial Motion
0.03 in
Bore Tolerance
+0.001/-0.000 in
Item
Disc Coupling
Dynamic Torque Reversing
212.5 in-lb
Screw Material
Alloy Steel
Dynamic Torque Non-Reversing
425 in-lb
Moment of Inertia
1.6112 lb-in sq
Center Spacer Material
Aluminum
For Misalignment Type
Angular, Axial, Parallel
Disc Material Grade
302
Hub Material Grade
2024
Hub Material Finish
Anodized
Standards
Conflict Minerals Compliant, DIN 912 12.9 Screws, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
System of Measurement
Inch to Metric Bore
Maximum Speed
10,000 RPM
Hub Material
Aluminum
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Number of Discs
2 with Center Spacer
Minimum Operating Temperature
-40 Degrees F
Shaft Locking Type
Clamp On
Maximum Operating Temperature
200 Degrees F
Zero Backlash
Yes
Disc Material
Stainless Steel
Application
Encoders, Stepper/Servo
For Motion Type
Continuous, Forward and Reverse, Start and Stop
Angular Misalignment
2 Degrees
Number of Locking Screws
2
Bore Type
Round
Parallel Misalignment
0.012 in
Shaft Tolerance
+0.0000 in/-0.0005 in
Screw Material Finish
Black Oxide
Disc Material Finish
Plain
Maximum Torque
850 in-lb
Torsional Stiffness
1,600 in-lb/Deg
Fastener Tightening Torque
39 N-m
Included Screws
(2) Hex Cap Screws
Full Bearing Support Required
Yes

Description

Disc Coupling, Angular Misalignment 2 Degrees , Axial Motion 0.03 in, Bore Diameter 1 1 1/2 in, Bore Diameter 2 35 mm, Bore Type Round, Clearance Diameter 2.8 in, Dynamic Torque Non-Reversing 425 in-lb, Hub Length 1.2 in, Hub Material Aluminum, Dynamic Torque Reversing 212.5 in-lb, Coupling Outside Diameter 2 3/4 in, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Length Through Bore 1 1.2 in, Length Through Bore 2 1.7 in, Maximum Bore Diameter 1 1/2 in
