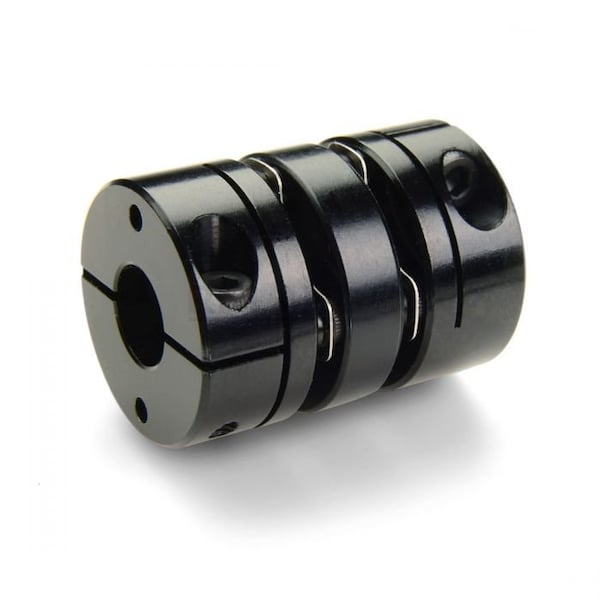

Ruland Disc Coupling DCD50-1 1/2"-25MM-A - main

Disc Coupling

  • Mfr # DCD50-1 1/2"-25MM-A

  • Zoro # G808678118

product price: $210.99
/ea
Free Shipping & Returns

Key Features

Overall Length
3 63/64 in
Minimum Operating Temperature
-10 Degrees F
Standards
RoHS3 and REACH Compliant
Coupling Outside Diameter
3 1/8 in
Center Spacer Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCD50-1 1/2"-25MM-A
Zoro #
G808678118
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
3 63/64 in
Coupling Outside Diameter
3 1/8 in
Different Bore Sizes
Yes
Minimum Bore Diameter
25 mm
Maximum Bore Diameter
1 1/2 in
Bore Diameter 2
25 mm
Bore Diameter 1
1 1/2 in

Details

Item
Disc Coupling
Minimum Operating Temperature
-10 Degrees F
Standards
RoHS3 and REACH Compliant
Center Spacer Material
Aluminum
Disc Material
Stainless Steel
Maximum Speed
10,000 RPM
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Maximum Operating Temperature
200 Degrees F
Zero Backlash
Yes
Disc Material Grade
302
For Misalignment Type
Parallel
Number of Discs
2 with Center Spacer
Shaft Locking Type
Clamp On
System of Measurement
Inch to Metric Bore
Hub Material Finish
Anodized
Hub Material
Aluminum
Hub Material Grade
2024

Description

Disc Coupling, Bore Diameter 1 1 1/2 in, Bore Diameter 2 25 mm, Hub Material Aluminum, Coupling Outside Diameter 3 1/8 in, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Maximum Bore Diameter 1 1/2 in, Minimum Bore Diameter 25 mm, Shaft Locking Type Clamp On, System of Measurement Inch to Metric Bore, Maximum Speed 10,000 RPM, Overall Length 3 63/64 in, Different Bore Sizes Yes, Disc Material Stainless Steel
