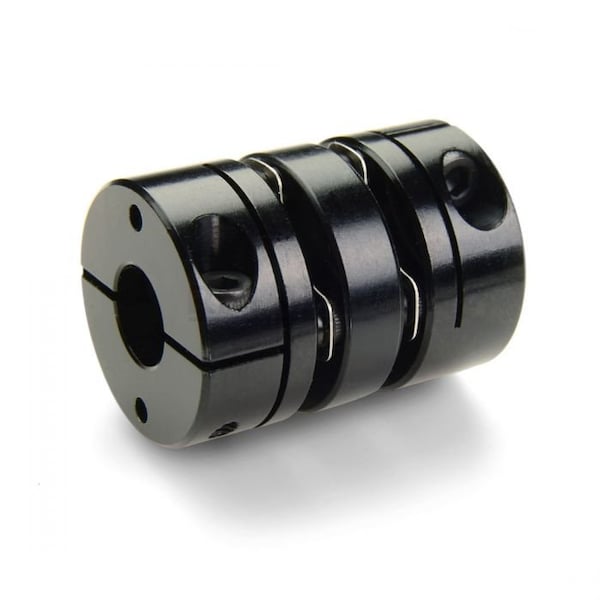

Disc Coupling
Mfr # DCD50-1 1/2"-30MM-A
Zoro # G708678164
product price: $231.99
/ea
Free Shipping & Returns
Key Features
Overall Length
3 63/64 in
Hub Material Finish
Anodized
Maximum Operating Temperature
200 Degrees F
Bore Diameter 1
1 1/2 in
Disc Material Grade
302
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DCD50-1 1/2"-30MM-A
Zoro #
G708678164
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
3 63/64 in
Bore Diameter 1
1 1/2 in
Bore Diameter 2
30 mm
Minimum Bore Diameter
30 mm
Coupling Outside Diameter
3 1/8 in
Different Bore Sizes
Yes
Maximum Bore Diameter
1 1/2 in
Details
Item
Disc Coupling
Hub Material Finish
Anodized
Maximum Operating Temperature
200 Degrees F
Disc Material Grade
302
For Misalignment Type
Parallel
Standards
RoHS3 and REACH Compliant
Maximum Speed
10,000 RPM
Hub Material
Aluminum
System of Measurement
Inch to Metric Bore
Center Spacer Material
Aluminum
Minimum Operating Temperature
-10 Degrees F
Shaft Locking Type
Clamp On
Disc Material
Stainless Steel
Zero Backlash
Yes
Hub Material Grade
2024
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Number of Discs
2 with Center Spacer
Description
Disc Coupling, Bore Diameter 1 1 1/2 in, Bore Diameter 2 30 mm, Hub Material Aluminum, Coupling Outside Diameter 3 1/8 in, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Maximum Bore Diameter 1 1/2 in, Minimum Bore Diameter 30 mm, Shaft Locking Type Clamp On, System of Measurement Inch to Metric Bore, Maximum Speed 10,000 RPM, Overall Length 3 63/64 in, Different Bore Sizes Yes, Disc Material Stainless Steel
