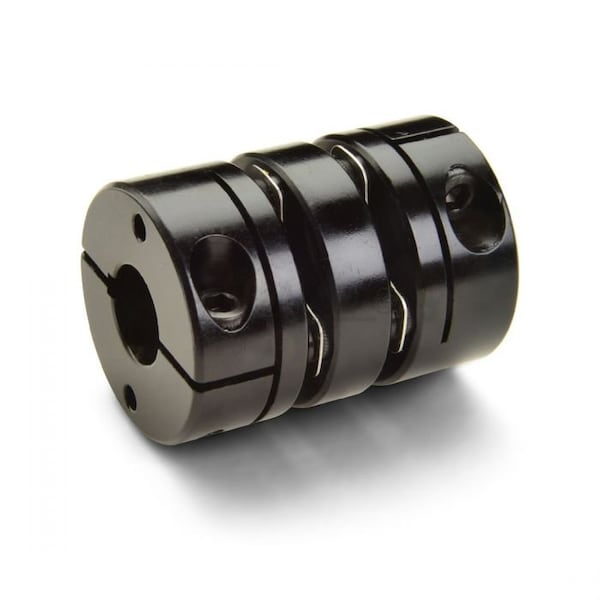

Disc Coupling
- Mfr # DCDK50-1 1/2"-30MM-A
- Zoro # G408678082
product price:Â
$
286.99
/ea
Free Shipping & Returns
Key Features
Overall Length
3 63/64 in
Bore Tolerance
+0.001/-0.000 in
Shaft Locking Type
Clamp On
Coupling Outside Diameter
3 1/8 in
Center Spacer Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- DCDK50-1 1/2"-30MM-A
- Zoro #
- G408678082
- UPC #
- -
- Country of Origin
- United States
- Bore Tolerance
- +0.001/-0.000 in
- Item
- Disc Coupling
- Shaft Locking Type
- Clamp On
- Center Spacer Material
- Aluminum
- Bore Type
- Round with Keyway
- Standards
- RoHS3 and REACH Compliant
- Hub Material
- Aluminum
- Zero Backlash
- Yes
- System of Measurement
- Inch
- Features
- Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
- Disc Material
- Stainless Steel
- Minimum Operating Temperature
- -10 Degrees F
- Number of Discs
- 2 with Center Spacer
- Hub Material Grade
- 2024
- Maximum Speed
- 10,000 RPM
- Maximum Operating Temperature
- 200 Degrees F
- Disc Material Grade
- 302
Dimensions
- Overall Length
- 3 63/64 in
- Coupling Outside Diameter
- 3 1/8 in
- Minimum Bore Diameter
- 30 mm
- Different Bore Sizes
- Yes
- Keyway Depth 1
- 8 mm
- Bore Diameter 1
- 1 1/2 in
- Maximum Bore Diameter
- 1 1/2 in
- Keyway Width 1
- 3/8 in
- Bore Diameter 2
- 30 mm
- Wire Rope Length
- 3 63/64 in
- Length
- 3 63/64 in
- Fits Chest Size
- Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Description
Disc Coupling, Bore Diameter 1 1 1/2 in, Bore Diameter 2 30 mm, Bore Type Round with Keyway, Hub Material Aluminum, Coupling Outside Diameter 3 1/8 in, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Maximum Bore Diameter 1 1/2 in, Minimum Bore Diameter 30 mm, Shaft Locking Type Clamp On, System of Measurement Inch, Maximum Speed 10,000 RPM, Overall Length 3 63/64 in, Different Bore Sizes Yes, Disc Material Stainless Steel
