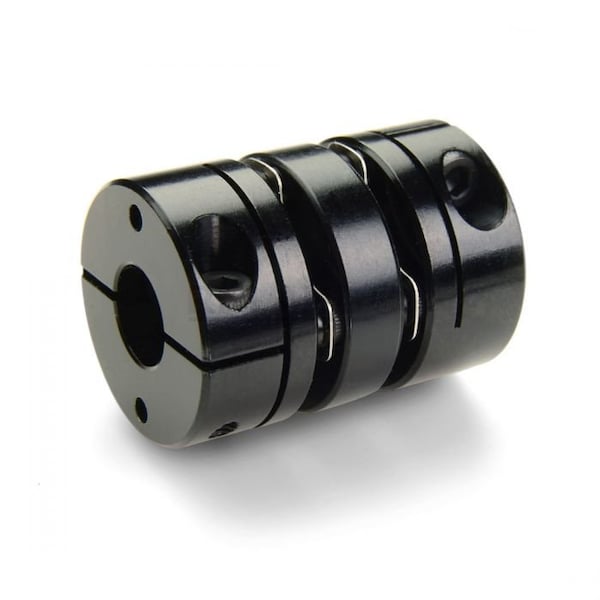

Disc Coupling
Mfr # MDCD70-35-30-A
Zoro # G608678172
product price: $201.99
/ea
Free Shipping & Returns
Key Features
Overall Length
89.7 mm
Axial Motion
0.76 mm
Bore Tolerance
+0.03/-0.00 mm
Screw Material
Alloy Steel
Moment of Inertia
0.00004814 kgf/m sq
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MDCD70-35-30-A
Zoro #
G608678172
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
89.7 mm
Bore Diameter 2
30 mm
Minimum Bore Diameter
30 mm
Maximum Bore Diameter
35 mm
Bore Diameter 1
35 mm
Different Bore Sizes
Yes
Coupling Outside Diameter
69.9 mm
Hub Length
30.5 mm
Length Through Bore 1
41.9 mm
Screw Length
20 mm
Clearance Diameter
69.9 mm
Length Through Bore 2
41.9 mm
Screw Thread Size
M8
Description
Disc Coupling, Angular Misalignment 2 Degrees , Axial Motion 0.76 mm, Bore Diameter 1 35 mm, Bore Diameter 2 30 mm, Bore Type Round, Clearance Diameter 69.9 mm, Dynamic Torque Non-Reversing 48 N-m, Hub Length 30.5 mm, Hub Material Aluminum, Dynamic Torque Reversing 24 N-m, Coupling Outside Diameter 69.9 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Length Through Bore 1 41.9 mm, Length Through Bore 2 41.9 mm, Maximum Bore Diameter 35 mm, Minimum Bore Diameter 30 mm
