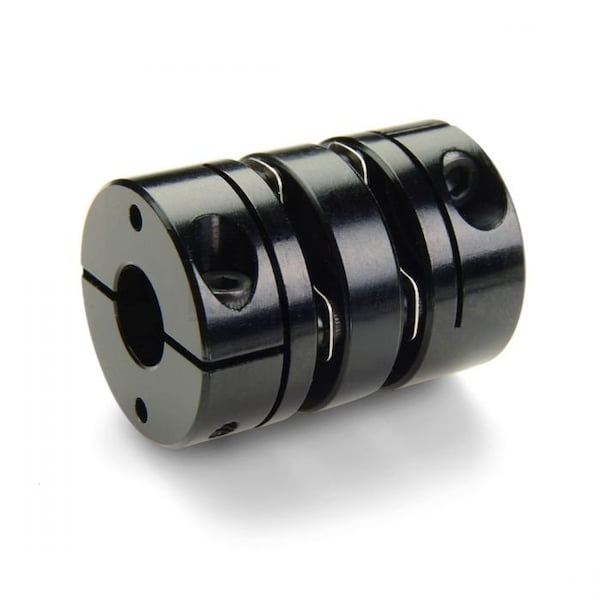

Disc Coupling
Mfr # MDCD80-30-30-A
Zoro # G408678242
product price:Â
$
224.99
/ea
Free Shipping & Returns
Key Features
Overall Length
101.2 mm
Bore Tolerance
+0.03/-0.00 mm
Zero Backlash
Yes
Different Bore Sizes
No
Maximum Operating Temperature
200 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MDCD80-30-30-A
- Zoro #
- G408678242
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 101.2 mm
- Different Bore Sizes
- No
- Bore Diameter 1
- 30 mm
- Coupling Outside Diameter
- 79.4 mm
- Bore Diameter 2
- 30 mm
- Wire Rope Length
- 101.2 mm
- Length
- 101.2 mm
Details
- Bore Tolerance
- +0.03/-0.00 mm
- Item
- Disc Coupling
- Zero Backlash
- Yes
- Maximum Operating Temperature
- 200 Degrees F
- Number of Discs
- 2 with Center Spacer
- Hub Material
- Aluminum
- Maximum Speed
- 10,000 RPM
- Standards
- RoHS3 and REACH Compliant
- Minimum Operating Temperature
- -10 Degrees F
- Center Spacer Material
- Aluminum
- Shaft Locking Type
- Clamp On
- System of Measurement
- Metric
- Disc Material
- Stainless Steel
- Disc Material Grade
- 302
- Features
- Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
- Hub Material Grade
- 2024
Description
Disc Coupling, Bore Diameter 1 30 mm, Bore Diameter 2 30 mm, Hub Material Aluminum, Coupling Outside Diameter 79.4 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Shaft Locking Type Clamp On, System of Measurement Metric, Maximum Speed 10,000 RPM, Overall Length 101.2 mm, Different Bore Sizes No, Disc Material Stainless Steel
