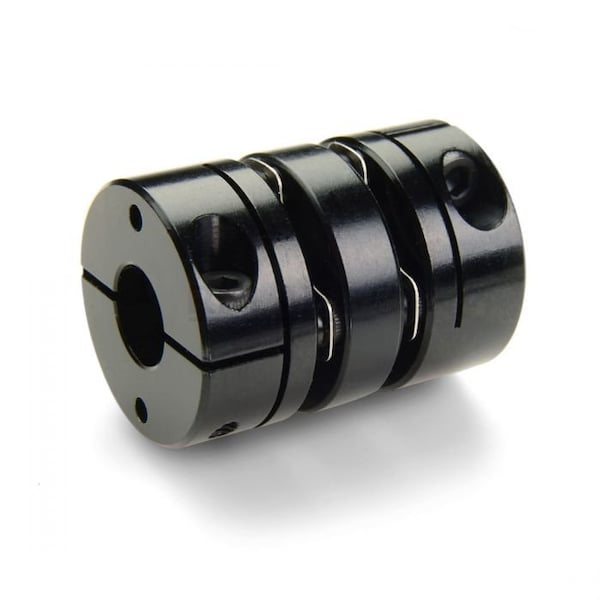

Disc Coupling
Mfr # MDCD80-40-25-A
Zoro # G808678262
product price:Â $224.99
/ea
Free Shipping & Returns
Key Features
Overall Length
101.2 mm
Bore Tolerance
+0.03/-0.00 mm
Hub Material Grade
2024
Maximum Bore Diameter
40 mm
Hub Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MDCD80-40-25-A
- Zoro #
- G808678262
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 101.2 mm
- Maximum Bore Diameter
- 40 mm
- Minimum Bore Diameter
- 25 mm
- Coupling Outside Diameter
- 79.4 mm
- Bore Diameter 2
- 25 mm
- Different Bore Sizes
- Yes
- Bore Diameter 1
- 40 mm
- Wire Rope Length
- 101.2 mm
Details
- Bore Tolerance
- +0.03/-0.00 mm
- Item
- Disc Coupling
- Hub Material Grade
- 2024
- Hub Material
- Aluminum
- Disc Material
- Stainless Steel
- Zero Backlash
- Yes
- Center Spacer Material
- Aluminum
- Minimum Operating Temperature
- -10 Degrees F
- Maximum Operating Temperature
- 200 Degrees F
- Features
- Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
- Disc Material Grade
- 302
- Shaft Locking Type
- Clamp On
- Standards
- RoHS3 and REACH Compliant
- System of Measurement
- Metric
- Number of Discs
- 2 with Center Spacer
- Maximum Speed
- 10,000 RPM
Description
Disc Coupling, Bore Diameter 1 40 mm, Bore Diameter 2 25 mm, Hub Material Aluminum, Coupling Outside Diameter 79.4 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Maximum Bore Diameter 40 mm, Minimum Bore Diameter 25 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Maximum Speed 10,000 RPM, Overall Length 101.2 mm, Different Bore Sizes Yes, Disc Material Stainless Steel
