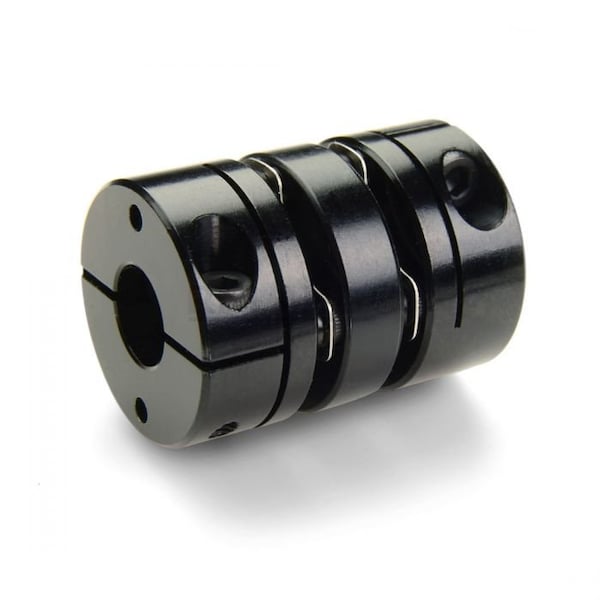

Disc Coupling
Mfr # MDCD80-40-40-A
Zoro # G808678231
product price:Â
$
224.99
/ea
Free Shipping & Returns
Key Features
Overall Length
101.2 mm
Bore Tolerance
+0.03/-0.00 mm
Hub Material
Aluminum
Standards
RoHS3 and REACH Compliant
Coupling Outside Diameter
79.4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MDCD80-40-40-A
- Zoro #
- G808678231
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Length
- 101.2 mm
- Coupling Outside Diameter
- 79.4 mm
- Bore Diameter 2
- 40 mm
- Bore Diameter 1
- 40 mm
- Different Bore Sizes
- No
- Wire Rope Length
- 101.2 mm
Details
- Item
- Disc Coupling
- Bore Tolerance
- +0.03/-0.00 mm
- Hub Material
- Aluminum
- Standards
- RoHS3 and REACH Compliant
- Maximum Speed
- 10,000 RPM
- Disc Material
- Stainless Steel
- Minimum Operating Temperature
- -10 Degrees F
- Hub Material Grade
- 2024
- Number of Discs
- 2 with Center Spacer
- Shaft Locking Type
- Clamp On
- System of Measurement
- Metric
- Maximum Operating Temperature
- 200 Degrees F
- Center Spacer Material
- Aluminum
- Features
- Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
- Zero Backlash
- Yes
- Disc Material Grade
- 302
Description
Disc Coupling, Bore Diameter 1 40 mm, Bore Diameter 2 40 mm, Hub Material Aluminum, Coupling Outside Diameter 79.4 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Shaft Locking Type Clamp On, System of Measurement Metric, Maximum Speed 10,000 RPM, Overall Length 101.2 mm, Different Bore Sizes No, Disc Material Stainless Steel
