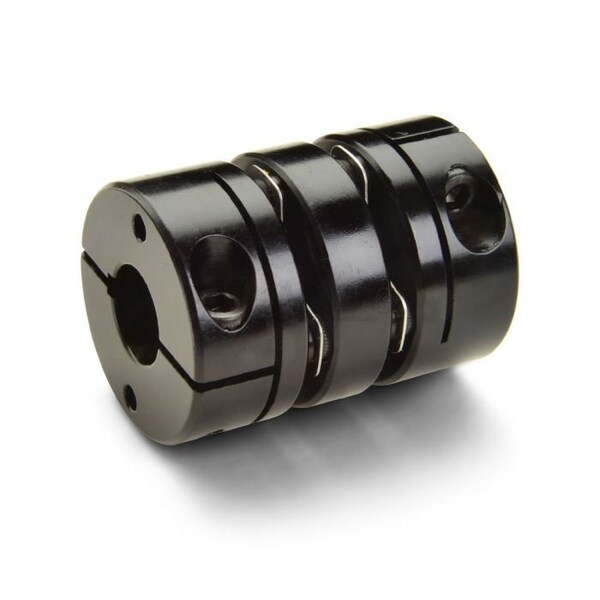

Ruland Disc Coupling MDCDK80-25-25-A - main

Disc Coupling

  • Mfr # MDCDK80-25-25-A

  • Zoro # G708678300

product price: $268.99
/ea
Free Shipping & Returns

Key Features

Overall Length
101.2 mm
Bore Tolerance
+0.03/-0.00 mm
Bore Diameter 1
25 mm
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Zero Backlash
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MDCDK80-25-25-A
Zoro #
G708678300
UPC #
-
Country of Origin
United States

Dimensions

Overall Length
101.2 mm
Bore Diameter 1
25 mm
Different Bore Sizes
No
Keyway Width 1
8 mm
Keyway Depth 1
8 mm
Coupling Outside Diameter
79.4 mm
Bore Diameter 2
25 mm

Details

Bore Tolerance
+0.03/-0.00 mm
Item
Disc Coupling
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Zero Backlash
Yes
Bore Type
Round with Keyway
Number of Discs
2 with Center Spacer
Standards
RoHS3 and REACH Compliant
Center Spacer Material
Aluminum
System of Measurement
Metric
Disc Material
Stainless Steel
Hub Material Grade
2024
Disc Material Grade
302
Maximum Operating Temperature
200 Degrees F
Maximum Speed
10,000 RPM
Hub Material
Aluminum
Minimum Operating Temperature
-10 Degrees F
Shaft Locking Type
Clamp On

Description

Disc Coupling, Bore Diameter 1 25 mm, Bore Diameter 2 25 mm, Bore Type Round with Keyway, Hub Material Aluminum, Coupling Outside Diameter 79.4 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Shaft Locking Type Clamp On, System of Measurement Metric, Maximum Speed 10,000 RPM, Overall Length 101.2 mm, Different Bore Sizes No, Disc Material Stainless Steel
