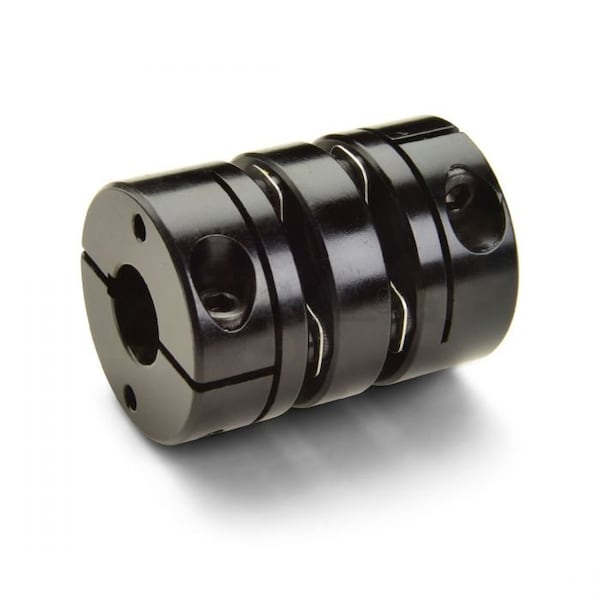

Disc Coupling
Mfr # MDCDK80-30-30-A
Zoro # G608678301
product price: $268.99
/ea
Free Shipping & Returns
Key Features
Overall Length
101.2 mm
Bore Tolerance
+0.03/-0.00 mm
Hub Material
Aluminum
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Keyway Width 1
8 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MDCDK80-30-30-A
Zoro #
G608678301
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
101.2 mm
Keyway Width 1
8 mm
Different Bore Sizes
No
Bore Diameter 1
30 mm
Keyway Depth 1
8 mm
Bore Diameter 2
30 mm
Coupling Outside Diameter
79.4 mm
Details
Item
Disc Coupling
Bore Tolerance
+0.03/-0.00 mm
Hub Material
Aluminum
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Hub Material Grade
2024
System of Measurement
Metric
Standards
RoHS3 and REACH Compliant
Bore Type
Round with Keyway
Maximum Operating Temperature
200 Degrees F
Disc Material
Stainless Steel
Shaft Locking Type
Clamp On
Number of Discs
2 with Center Spacer
Zero Backlash
Yes
Minimum Operating Temperature
-10 Degrees F
Disc Material Grade
302
Maximum Speed
10,000 RPM
Center Spacer Material
Aluminum
Description
Disc Coupling, Bore Diameter 1 30 mm, Bore Diameter 2 30 mm, Bore Type Round with Keyway, Hub Material Aluminum, Coupling Outside Diameter 79.4 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Shaft Locking Type Clamp On, System of Measurement Metric, Maximum Speed 10,000 RPM, Overall Length 101.2 mm, Different Bore Sizes No, Disc Material Stainless Steel
