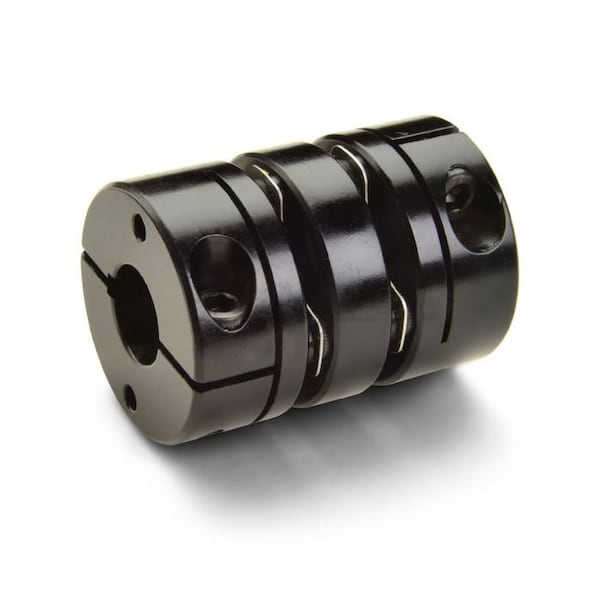

Disc Coupling
Mfr # MDCDK80-45-25-A
Zoro # G108678269
product price:Â
$
282.99
/ea
Free Shipping & Returns
Key Features
Overall Length
101.2 mm
Bore Tolerance
+0.03/-0.00 mm
Maximum Operating Temperature
200 Degrees F
Features
Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
Minimum Bore Diameter
25 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MDCDK80-45-25-A
- Zoro #
- G108678269
- UPC #
- -
- Country of Origin
- United States
- Item
- Disc Coupling
- Bore Tolerance
- +0.03/-0.00 mm
- Maximum Operating Temperature
- 200 Degrees F
- Features
- Balanced Design for High RPM, Constant Velocity, High Torque, High Torsional Stiffness, Long Life, Low Inertia, No Maintenance
- Hub Material Grade
- 2024
- Zero Backlash
- Yes
- Number of Discs
- 2 with Center Spacer
- Standards
- RoHS3 and REACH Compliant
- Bore Type
- Round with Keyway
- System of Measurement
- Metric
- Minimum Operating Temperature
- -10 Degrees F
- Maximum Speed
- 10,000 RPM
- Shaft Locking Type
- Clamp On
- Disc Material Grade
- 302
- Center Spacer Material
- Aluminum
- Disc Material
- Stainless Steel
- Hub Material
- Aluminum
Description
Disc Coupling, Bore Diameter 1 45 mm, Bore Diameter 2 25 mm, Bore Type Round with Keyway, Hub Material Aluminum, Coupling Outside Diameter 79.4 mm, Number of Discs 2 with Center Spacer, Center Spacer Material Aluminum, Maximum Bore Diameter 45 mm, Minimum Bore Diameter 25 mm, Shaft Locking Type Clamp On, System of Measurement Metric, Maximum Speed 10,000 RPM, Overall Length 101.2 mm, Different Bore Sizes Yes, Disc Material Stainless Steel
