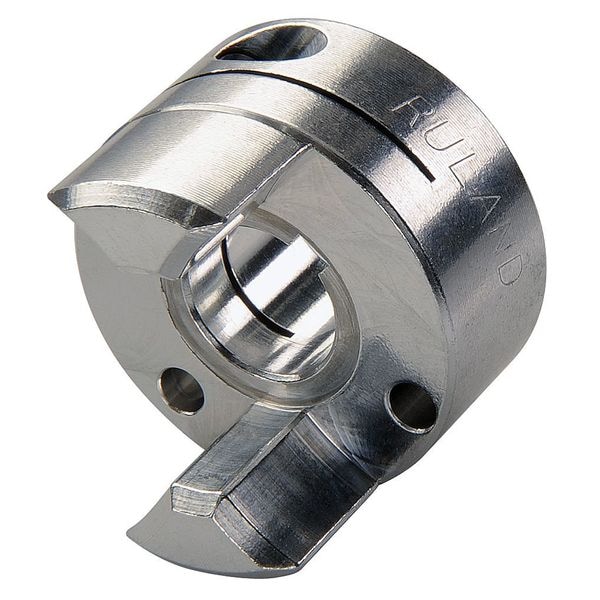

Jaw Coupling Hub, 10mm, Aluminum
Mfr # MJCC33-10-A
Zoro # G8048896
product price: $39.89
/eaKey Features
Item - Jaw Coupling Hubs
Curved Jaw Coupling Hub
Keyway Size Type
3mm x 1.4mm
Material - Hubs
Aluminum
Outside Dia.
33.3 mm
Assembled Coupling Length
44.3 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MJCC33-10-A
Zoro #
G8048896
UPC #
634529116203
Country of Origin
United States
Dimensions
Size - Jaw Couplings
MJCC33
Bore Dia.
10 mm
Keyway Size Type
3mm x 1.4mm
Outside Dia.
33.3 mm
Assembled Coupling Length
44.3 mm
Keyway Size
3mm x 1.4mm
Size
MJCC33
Overall Length
44.3 mm
Coupling Size
MJC33
Screw Thread Size
M3
Keyway Width
3 mm
Keyway Depth
1.4 mm
Outside Diameter
33.3 mm
Bore Diameter
10 mm
Hub Diameter
33.3 mm
Coupling Overall Length
44.5 mm
Length through Bore
15 mm
Description
Jaw Coupling Hub, Coupling Size MJC33, Outside Diameter 33.3 mm, Coupling Overall Length 44.5 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth 1.4 mm, Keyway Width 3 mm, Bore Diameter 10 mm, Shaft Locking Type Clamp On, Bore Type Round Bore with Keyway, Jaw Profile Curved, Screw Thread Size M3, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 33.3 mm
