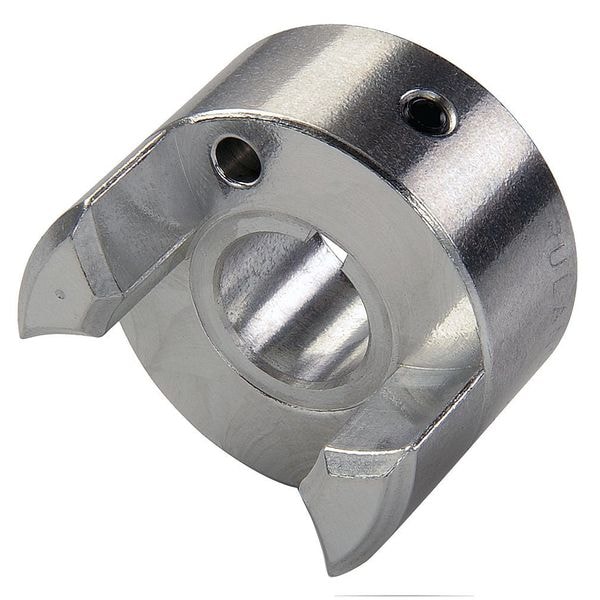

Jaw Coupling Hub, 1/2in., Aluminum
Mfr # JSC21-8-A
Zoro # G7830015
product price: $42.59
/eaKey Features
Item - Jaw Coupling Hubs
Curved Jaw Coupling Hub
Keyway Size Type
1/8 in x 1/16 in
Material - Hubs
Aluminum
Outside Dia.
0.31 in
Assembled Coupling Length
1.75 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
JSC21-8-A
Zoro #
G7830015
UPC #
634529113394
Country of Origin
United States
Dimensions
Size - Jaw Couplings
JSC21
Bore Dia.
1/2 in
Keyway Size Type
1/8 in x 1/16 in
Outside Dia.
0.31 in
Assembled Coupling Length
1.75 in
Keyway Size
1/8" x 1/16"
Size
JSC21
Overall Length
1.75 in
Coupling Size
JS21
Screw Thread Size
M4
Outside Diameter
1 5/16 in
Length through Bore
0.6 in
Coupling Overall Length
1 3/4 in
Hub Diameter
1 5/16 in
Keyway Depth
1/16 in
Bore Diameter
1/2 in
Keyway Width
1/8 in
Description
Jaw Coupling Hub, Coupling Size JS21, Outside Diameter 1 5/16 in, Coupling Overall Length 1 3/4 in, System of Measurement Inch, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth 1/16 in, Keyway Width 1/8 in, Bore Diameter 1/2 in, Shaft Locking Type Set Screw, Bore Type Round Bore with Keyway, Jaw Profile Curved, Screw Thread Size M4, Bore Tolerance +0.002/-0.000 in, Fail Safe Yes, Shaft Tolerance +0.0000/-0.0005 in, Full Bearing Support Required Yes, Hub Diameter 1 5/16 in
