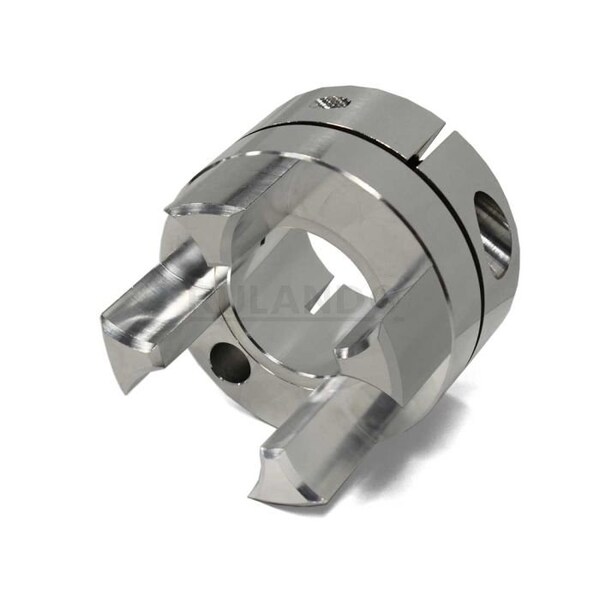

Jaw Coupling Hub
Mfr # MJC80-25-A
Zoro # G308674917
product price: $107.99
/ea
Free Shipping & Returns
Key Features
Coupling Size
MJC80
Jaw Profile
Curved
Maximum Operating Temperature
180 Degrees F
Bore Tolerance
+0.03/-0.00 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015, REACH Compliant, RoHS Compliant
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MJC80-25-A
Zoro #
G308674917
UPC #
-
Country of Origin
United States
Dimensions
Coupling Size
MJC80
Bore Diameter
25 mm
Coupling Overall Length
111.2 mm
Maximum Bore Diameter
25 mm
Outside Diameter
79.4 mm
Hub Diameter
79.4 mm
Length through Bore
40.4 mm
Screw Thread Size
M8
Description
Jaw Coupling Hub, Coupling Size MJC80, Outside Diameter 79.4 mm, Coupling Overall Length 111.2 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth Not Applicable, Keyway Width Not Applicable, Bore Diameter 25 mm, Shaft Locking Type Clamp On, Bore Type Round Bore, Jaw Profile Curved, Screw Thread Size M8, Bore Tolerance +0.03/-0.00 mm, Fail Safe Yes, Features Balanced Design, Replaceable Spider, Shaft Tolerance +0.000/-0.013 mm
