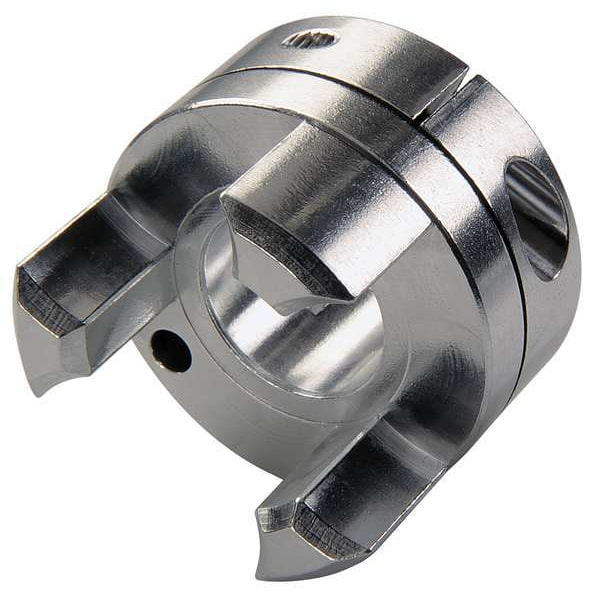

Jaw Cplg Hub, Bore Dia 16 mm, Size MJC41
Mfr # MJC41-16-A
Zoro # G3237604
product price: $46.19
/eaKey Features
Item - Jaw Coupling Hubs
Curved Jaw Coupling Hub
Keyway Size Type
None
Material - Hubs
Aluminum
Outside Dia.
1.63 in
Assembled Coupling Length
53 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MJC41-16-A
Zoro #
G3237604
UPC #
634529067840
Country of Origin
United States
Dimensions
Size - Jaw Couplings
MJC41
Bore Dia.
16 mm
Keyway Size Type
None
Outside Dia.
1.63 in
Assembled Coupling Length
53 mm
Overall Length
53 mm
Size
MJC41
Keyway Size
None
Coupling Size
MJC41
Hub Diameter
41.3 mm
Bore Diameter
16 mm
Coupling Overall Length
53 mm
Outside Diameter
41.3 mm
Length through Bore
18 mm
Screw Thread Size
M4
Description
Jaw Coupling Hub, Coupling Size MJC41, Outside Diameter 41.3 mm, Coupling Overall Length 53 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth Not Applicable, Keyway Width Not Applicable, Bore Diameter 16 mm, Shaft Locking Type Clamp On, Bore Type Round Bore, Jaw Profile Curved, Screw Thread Size M4, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 41.3 mm
