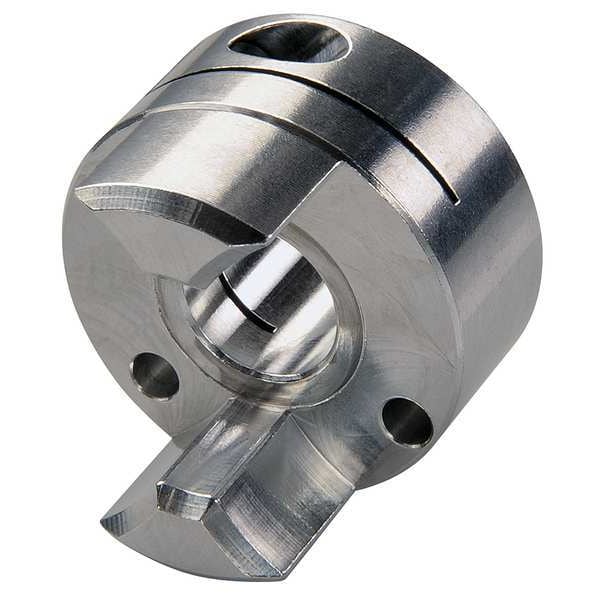

Jaw Cplg Hub, Bore Dia 8 mm, Size MJC19
Mfr # MJC19-8-A
Zoro # G1995271
product price: $20.29
/eaKey Features
Item - Jaw Coupling Hubs
Curved Jaw Coupling Hub
Keyway Size Type
None
Material - Hubs
Aluminum
Outside Dia.
0.75 in
Assembled Coupling Length
27.2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MJC19-8-A
Zoro #
G1995271
UPC #
634529067710
Country of Origin
United States
Dimensions
Size - Jaw Couplings
MJC19
Bore Dia.
8 mm
Keyway Size Type
None
Outside Dia.
0.75 in
Assembled Coupling Length
27.2 mm
Size
MJC19
Keyway Size
None
Overall Length
27.2 mm
Coupling Size
MJC19
Hub Diameter
19.1 mm
Screw Thread Size
M2.5
Coupling Overall Length
27.2 mm
Bore Diameter
8 mm
Outside Diameter
19.1 mm
Length through Bore
9.8 mm
Description
Jaw Coupling Hub, Coupling Size MJC19, Outside Diameter 19.1 mm, Coupling Overall Length 27.2 mm, System of Measurement Metric, Hub Material Aluminum, Maximum Speed 8,000 RPM, Keyway Depth Not Applicable, Keyway Width Not Applicable, Bore Diameter 8 mm, Shaft Locking Type Clamp On, Bore Type Round Bore, Jaw Profile Curved, Screw Thread Size M2.5, Bore Tolerance +0.05/-0.00 mm, Fail Safe Yes, Shaft Tolerance +0.000/-0.013 mm, Full Bearing Support Required Yes, Hub Diameter 19.1 mm
