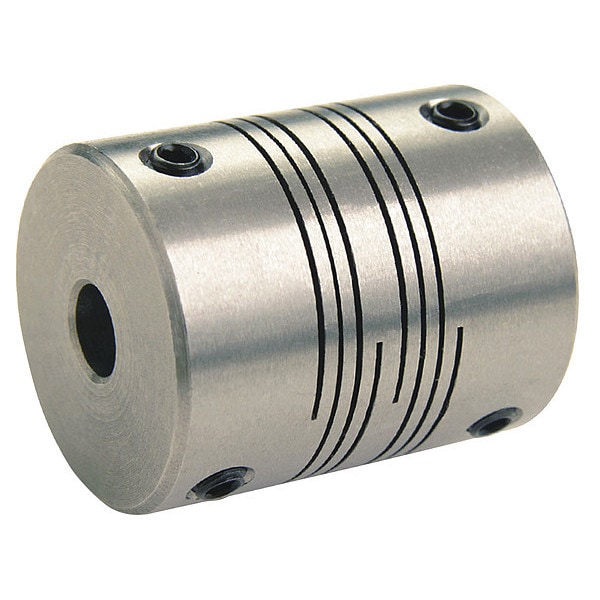

Motion Control Coupling, 4 Beam, 4x3mm, 303 SS, OD 12.7mm, L 19.1mm

Mfr # PSMR13-4-3-SS
Zoro # G7087232

84.49

Key Features

Bore Dia.

4 mm x 3 mm

Max. RPM

6000 RPM

Outside Dia.

12.7 mm

Overall Length

19.1 mm

Style

Set Screw

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PSMR13-4-3-SS
Zoro #: G7087232
UPC #: -
Country of Origin: United States

Dimensions

Bore Dia.: 4 mm x 3 mm
Outside Dia.: 12.7 mm
Overall Length: 19.1 mm
Fastening Dimensions: Metric
Set Screw Size: M2

Details

Max. RPM: 6000 RPM
Item: Beam Coupling,4 Beam,4x3mm,303 SS
Style: Set Screw
Material: 303 Stainless Steel
Torsional Stiffness (Deg./In.-Lbs.): 3.26 Deg/Nm
Max. Temp. Range (F): -40°F to 350°F (-40°C to 176°C)
Max. Angular Misalignment: 3 deg
Max. Parallel Misalignment (In.): 0.20 mm
Screw Finish: Black Oxide
Dynamic Torque Reversing: 0.31 Nm
Dynamic Torque Non-Reversing: 0.62 Nm
Screw Seating Torque: 0.21 Nm
Static Torque: 1.24 Nm
B1 Shaft Penetration: 9.0 mm
Measurement Type: Metric
Screw Material: Alloy Steel
B2 Shaft Penetration: 9.0 mm
Axial Motion: 0.13 mm
Recommended Shaft Tolerance: +0.000 mm / -0.013 mm
Number of Screws: 2 ea
Bore Tolerance: +0.025 mm / -0.000 mm
Moment of Inertia: 0.351 x10<sup>-6</sup> kg-m<sup>2</sup>

Description

Beam Coupling,4 Beam,4x3mm,303 SS
