  11. Motion Control Coupling, 6 Beam, 1/4"x6mm, Aluminum, OD 1.000", L 1.500"

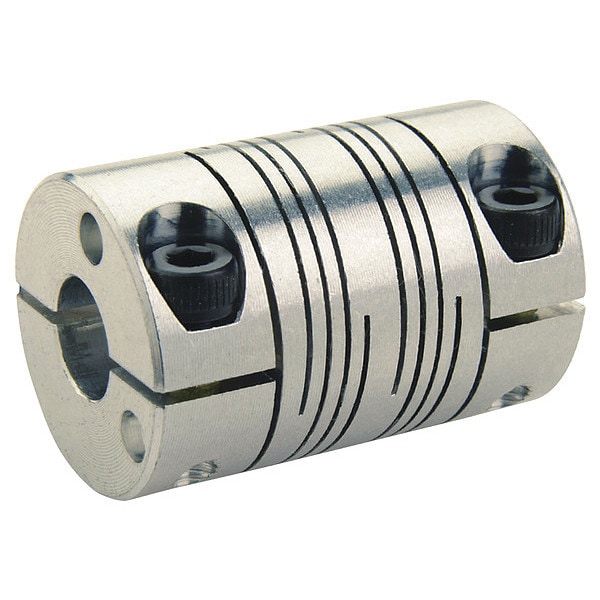

Ruland Motion Control Coupling, 6 Beam, 1/4"x6mm, Aluminum, OD 1.000", L 1.500" FCR16-1/4"-6MM-A - main

Motion Control Coupling, 6 Beam, 1/4"x6mm, Aluminum, OD 1.000", L 1.500"

  • Mfr # FCR16-1/4"-6MM-A

  • Zoro # G7088090

product price: $47.59
/ea

Key Features

Bore Dia.
0.250 in x 6 mm
Max. RPM
6000 RPM
Outside Dia.
1.000 in (25.4 mm)
Overall Length
1.500 in (38.1 mm)
Max. Temp. Range (F)
-40°F to 225°F (-40°C to 107°C)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FCR16-1/4"-6MM-A
Zoro #
G7088090
UPC #
634529195888
Country of Origin
United States

Dimensions

Bore Dia.
0.250 in x 6 mm
Outside Dia.
1.000 in (25.4 mm)
Overall Length
1.500 in (38.1 mm)
Clearance Dia. (In.)
1.117 in
Screw Size
M4
Fastening Dimensions
Metric

Details

Max. RPM
6000 RPM
Item
Beam Coupling,6 Beam,1/4"x6mm,Aluminum
Max. Temp. Range (F)
-40°F to 225°F (-40°C to 107°C)
Material
Aluminum
Max. Parallel Misalignment (In.)
0.015 in (0.38 mm)
Style
Clamp
Max. Angular Misalignment
3 deg
Torsional Stiffness (Deg./In.-Lbs.)
0.064 Deg/lb-in (0.57 Deg/Nm)
Number of Screws
2 ea
Bore Tolerance
+0.001 in / -0.000 in (+0.025 mm / -0.000 mm)
B1 Shaft Penetration
0.720 in
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in (+0.000 mm / -0.013 mm)
B2 Shaft Penetration
18.3 mm
Screw Material
Alloy Steel with Nypatch®
Static Torque
35 lb-in (3.96 Nm)
Moment of Inertia
0.0139 lb-in<sup>2</sup>, 4.120 x10<sup>-6</sup> kg-m<sup>2</sup>
Dynamic Torque Reversing
8.75 lb-in (0.99 Nm)
Measurement Type
Inch/Metric
Screw Seating Torque
4.6 Nm
Dynamic Torque Non-Reversing
17.5 lb-in (1.98 Nm)
Axial Motion
0.010 in (0.25 mm)
Screw Finish
Black Oxide

Description

Beam Coupling,6 Beam,1/4 In.x6mm,Aluminum
