  6. Motion Control Coupling, 6 Beam, 20x12mm, 303 SS, OD 38.1mm, L 57.2mm

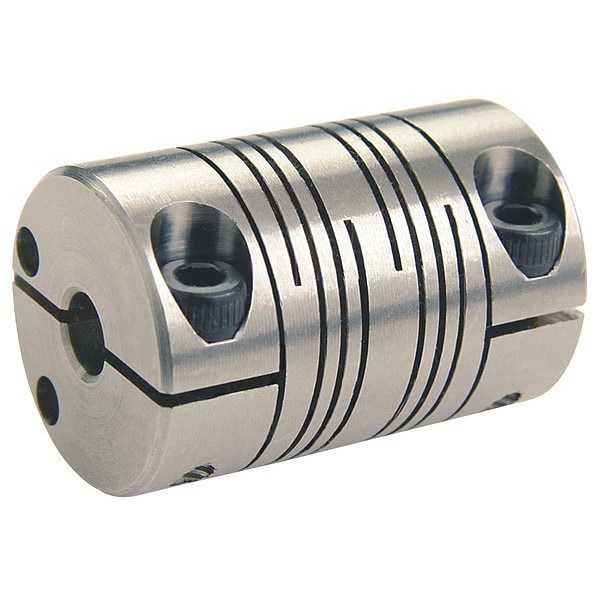

Ruland Motion Control Coupling, 6 Beam, 20x12mm, 303 SS, OD 38.1mm, L 57.2mm FCMR38-20-12-SS - main

Motion Control Coupling, 6 Beam, 20x12mm, 303 SS, OD 38.1mm, L 57.2mm

  • Mfr # FCMR38-20-12-SS

  • Zoro # G7091432

product price:  $267.99
/ea
Free Shipping & Returns

Key Features

Bore Dia.
20 mm x 12 mm
Max. RPM
6000 RPM
Outside Dia.
38.1 mm
Overall Length
57.2 mm
Screw Size
M6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FCMR38-20-12-SS
Zoro #
G7091432
UPC #
634529210048
Country of Origin
United States

Dimensions

Bore Dia.
20 mm x 12 mm
Outside Dia.
38.1 mm
Overall Length
57.2 mm
Screw Size
M6
Clearance Dia. (mm)
41.71 mm
Fastening Dimensions
Metric

Details

Max. RPM
6000 RPM
Item
Beam Coupling,6 Beam,20x12mm,303 SS
Style
Clamp
Max. Temp. Range (F)
-40°F to 350°F (-40°C to 176°C)
Material
303 Stainless Steel
Torsional Stiffness (Deg./In.-Lbs.)
0.28 Deg/Nm
Max. Parallel Misalignment (In.)
0.76 mm
Max. Angular Misalignment
3 deg
Bore Tolerance
+0.025 mm / -0.000 mm
B2 Shaft Penetration
27.3 mm
Dynamic Torque Non-Reversing
4.75 Nm
Number of Screws
2 ea
Screw Finish
Black Oxide
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Dynamic Torque Reversing
2.37 Nm
Screw Seating Torque
16 Nm
Axial Motion
0.38 mm
B1 Shaft Penetration
27.3 mm
Screw Material
Alloy Steel with Nypatch®
Measurement Type
Metric
Moment of Inertia
83.407 x10<sup>-6</sup> kg-m<sup>2</sup>
Static Torque
9.49 Nm

Description

Beam Coupling,6 Beam,20x12mm,303 SS
