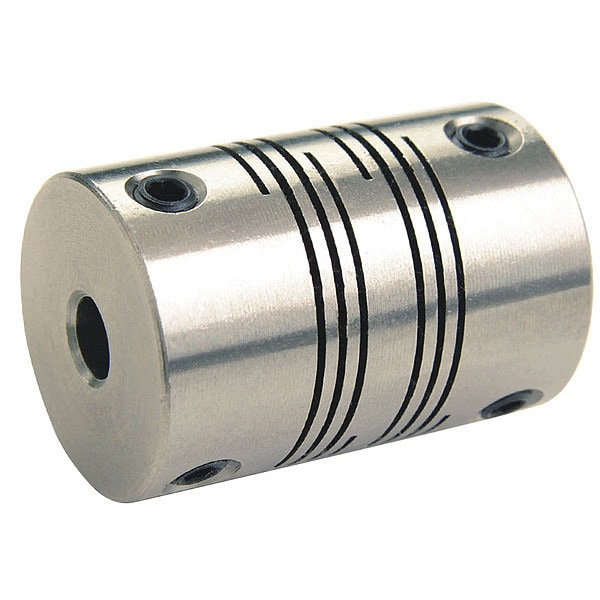

Motion Control Coupling, 6 Beam, 20x20mm, 303 SS, OD 38.1mm, L 57.2mm
- Mfr # FSMR38-20-20-SS
- Zoro # G7091703
product price:Â
$
202.99
/ea
Free Shipping & Returns
Key Features
Bore Dia.
20 mm x 20 mm
Max. RPM
6000 RPM
Outside Dia.
38.1 mm
Overall Length
57.2 mm
Max. Temp. Range (F)
-40°F to 350°F (-40°C to 176°C)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- FSMR38-20-20-SS
- Zoro #
- G7091703
- UPC #
- 634529211519
- Country of Origin
- United States
- Max. RPM
- 6000 RPM
- Item
- Beam Coupling,6 Beam,20x20mm,303 SS
- Max. Temp. Range (F)
- -40°F to 350°F (-40°C to 176°C)
- Style
- Set Screw
- Max. Angular Misalignment
- 3 deg
- Max. Parallel Misalignment (In.)
- 0.76 mm
- Material
- 303 Stainless Steel
- Torsional Stiffness (Deg./In.-Lbs.)
- 0.28 Deg/Nm
- Moment of Inertia
- 83.407 x10<sup>-6</sup> kg-m<sup>2</sup>
- Dynamic Torque Reversing
- 2.37 Nm
- Recommended Shaft Tolerance
- +0.000 mm / -0.013 mm
- Number of Screws
- 4 ea
- Screw Finish
- Black Oxide
- Static Torque
- 9.49 Nm
- Screw Material
- Alloy Steel
- Axial Motion
- 0.38 mm
- B2 Shaft Penetration
- 27.3 mm
- Bore Tolerance
- +0.025 mm / -0.000 mm
- Dynamic Torque Non-Reversing
- 4.75 Nm
- B1 Shaft Penetration
- 27.3 mm
- Screw Seating Torque
- 7.2 Nm
- Measurement Type
- Metric
Description
Beam Coupling,6 Beam,20x20mm,303 SS
