  11. Motion Control Coupling, 6 Beam, 5/8"x14mm, 303 SS, OD 1.500", L 2.250"

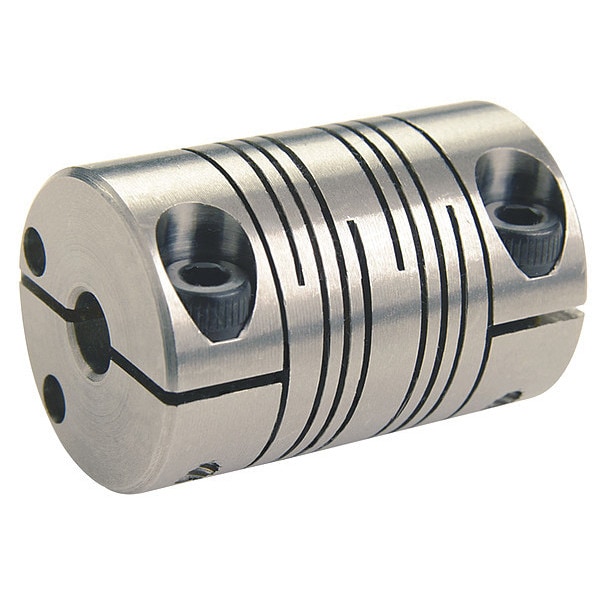

Ruland Motion Control Coupling, 6 Beam, 5/8"x14mm, 303 SS, OD 1.500", L 2.250" FCR24-5/8"-14MM-SS - main

Motion Control Coupling, 6 Beam, 5/8"x14mm, 303 SS, OD 1.500", L 2.250"

  • Mfr # FCR24-5/8"-14MM-SS

  • Zoro # G7092607

product price: $267.99
/ea
Free Shipping & Returns

Key Features

Bore Dia.
0.625 in x 14 mm
Max. RPM
6000 RPM
Outside Dia.
1.500 in (38.1 mm)
Overall Length
2.250 in (57.2 mm)
Material
303 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FCR24-5/8"-14MM-SS
Zoro #
G7092607
UPC #
634529134108
Country of Origin
United States

Dimensions

Bore Dia.
0.625 in x 14 mm
Outside Dia.
1.500 in (38.1 mm)
Overall Length
2.250 in (57.2 mm)
Clearance Dia. (In.)
1.642 in
Screw Size
M6
Fastening Dimensions
Metric

Details

Max. RPM
6000 RPM
Item
Beam Coupling,6 Beam,5/8"x14mm,303 SS
Material
303 Stainless Steel
Style
Clamp
Torsional Stiffness (Deg./In.-Lbs.)
0.031 Deg/lb-in (0.27 Deg/Nm)
Max. Parallel Misalignment (In.)
0.030 in (0.76 mm)
Max. Angular Misalignment
3 deg
Max. Temp. Range (F)
-40°F to 350°F (-40°C to 176°C)
B2 Shaft Penetration
27.3 mm
Dynamic Torque Reversing
43.75 lb-in (4.94 Nm)
Dynamic Torque Non-Reversing
87.5 lb-in (9.89 Nm)
Moment of Inertia
0.2814 lb-in<sup>2</sup>, 83.407 x10<sup>-6</sup> kg-m<sup>2</sup>
Screw Material
Alloy Steel with Nypatch®
Screw Seating Torque
16 Nm
Number of Screws
2 ea
Bore Tolerance
+0.001 in / -0.000 in (+0.025 mm / -0.000 mm)
Axial Motion
0.015 in (0.38 mm)
Measurement Type
Inch/Metric
Screw Finish
Black Oxide
B1 Shaft Penetration
1.075 in
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in (+0.000 mm / -0.013 mm)
Static Torque
175 lb-in (19.78 Nm)

Description

Beam Coupling,6 Beam,5/8 In.x14mm,303 SS
