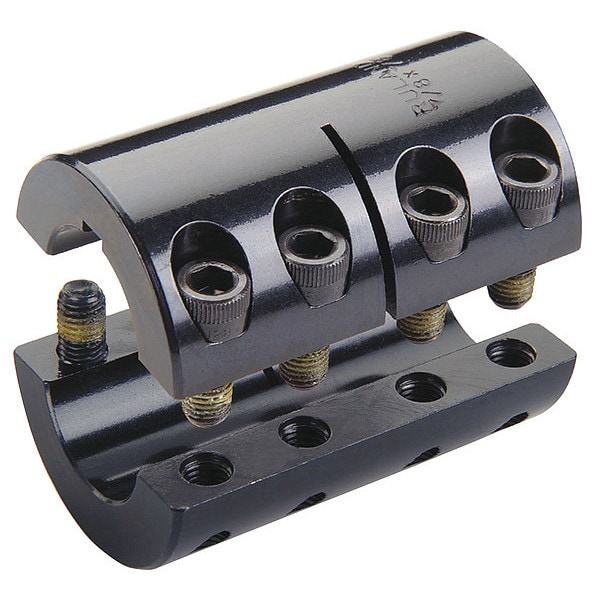

Rigid Coupling, 2-Pc, 15x14mm, Steel
Mfr # MSPC-15-14-F
Zoro # G7099747
product price: $180.99
/ea
Free Shipping & Returns
Key Features
System of Measurement
Metric
Bore Dia.
15 mm x 14 mm
Outside Dia.
34 mm
Overall Length
50 mm
Finish
Black Oxide
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MSPC-15-14-F
Zoro #
G7099747
UPC #
634529016701
Country of Origin
United States
Dimensions
Bore Dia.
15 mm x 14 mm
Outside Dia.
34 mm
Overall Length
50 mm
Clearance Dia.
39.4 mm
Details
Item
Rigid Coupling,2-Pc,15x14mm,Steel
System of Measurement
Metric
Finish
Black Oxide
Material
1215 Carbon Lead-Free Steel Bar
Max. RPM
4000 RPM
Style
Two-Piece with Keyway
Max. Temp. Range (F)
-40°F to 350°F (-40°C to 176°C)
Rated Torque
200 Nm
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Clamp Screw
M5
Screw Location
12.0 mm
Number of Screws
8 ea
Bore Tolerance
+0.05 mm / +0.012 mm
Keyway (K1)
5 mm
B1 Shaft Penetration
25.0 mm
Keyway (K2)
5 mm
Screw Seating Torque
9.5 Nm
Screw Material
Alloy Steel with Nypatch®
Recommended Installation Gap
1.60 mm
B2 Shaft Penetration
25.0 mm
Description
Rigid Coupling,2-Pc,15x14mm,Steel
