  11. Rigid Shaft Coupling, One Piece, 1-7/16in.

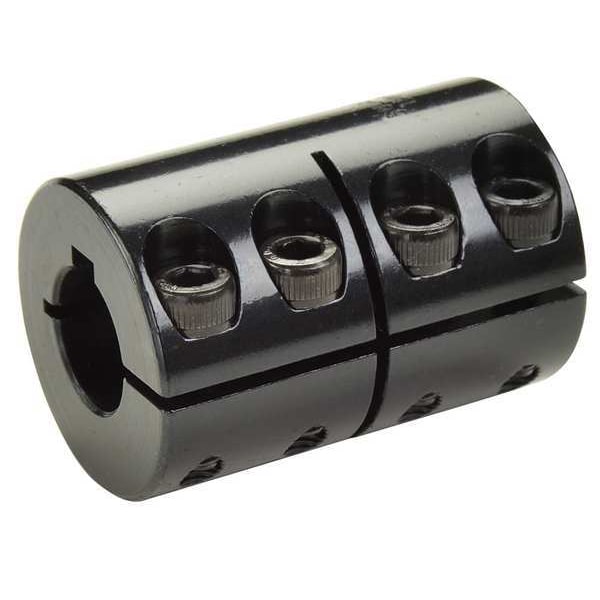

Ruland Rigid Shaft Coupling, One Piece, 1-7/16in. CLC-23-23-F - main

Rigid Shaft Coupling, One Piece, 1-7/16in.

  • Mfr # CLC-23-23-F

  • Zoro # G7881002

product price: $150.99
/ea
Free Shipping & Returns

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Material - Couplings
1215 Lead Free Steel
Outside Dia.
2 5/8 in
Overall Length
3 7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CLC-23-23-F
Zoro #
G7881002
UPC #
634529112243
Country of Origin
United States

Dimensions

Bore Dia.
1 7/16 in
Outside Dia.
2 5/8 in
Overall Length
3 7/8 in
Screw Size
5/16"-24
Keyway Width (In.)
3/8"
Keyway Width
3/8 in
Screw Size (In.)
5/16-24
Clearance Dia. (In.)
2.840
Clearance Dia.
2.84 in
Minimum Bore Diameter
1 7/16 in
Screw Thread Size
5/16"-24
Keyway Depth 1
3/16 in
Coupling Outside Diameter
2 5/8 in
Clearance Diameter
2.84 in
Bore Diameter 2
1 7/16 in
Keyway Depth 2
3/16 in
Keyway Width 1
3/8 in
Different Bore Sizes
No
Bore Diameter 1
1 7/16 in
Maximum Bore Diameter
1 7/16 in
Keyway Width 2
3/8 in

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Material - Couplings
1215 Lead Free Steel
With Keyway / Without Keyway
With Keyway
Finish
black oxide
Type
One Piece Clamp Type, with Keyway
Max. RPM
4,000 RPM
Provides
High Torque with No Misalignment Capabilities
Material
1215 Lead Free Steel
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Design
Precision Honed Bores On Straight Bore Rigid Couplings, Anti-Vibration Coating Used On Hardware, Bore Tolerance of +.002"/.0005" (+.050mm/+.012mm), Machined From Solid Bar Stock and Sourced Exclusively from North American Mills
Machined From
Bar Stock
Application
Zero Backlash Coupling That is Well Suited for Precise Servo Applications and Shaft to Shaft Connections with No Misalignment
Standards
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.0020 in / +0.0005 in
Screw Material
Alloy Steel
Maximum Speed
4,000 RPM
Features
Precision Honed Bores, Vibration-Resistant Screws
Number of Locking Screws
4
Minimum Operating Temperature
-40 Degrees F
Included Screws
(4) Clamp Screws
Coupling Construction
One-Piece
Screw Material Finish
Black Oxide
Fastener Tightening Torque
325 lb-in
Resistance Properties
Corrosion Resistant
Maximum Operating Temperature
350 Degrees F
Bore Type
Round Keyed
Coupling Material Finish
Black Oxide
Coupling Material
Carbon Steel
Shaft Tolerance
+0.0000 in / -0.0005 in
Maximum Torque
10,250 in-lb
Screw Location from Center
1.05 in
Shaft Locking Type
Clamp On
Zero Backlash
Yes
Coupling Material Grade
1215

Description

Rigid Shaft Coupling, Bore Diameter 1 1 7/16 in, Bore Diameter 2 1 7/16 in, Bore Type Round Keyed, Clearance Diameter 2.84 in, Coupling Construction One-Piece, Coupling Material Carbon Steel, Coupling Outside Diameter 2 5/8 in, Different Bore Sizes No, Keyway Depth 1 3/16 in, Keyway Depth 2 3/16 in, Minimum Bore Diameter 1 7/16 in, Keyway Width 1 3/8 in, Keyway Width 2 3/8 in, Maximum Bore Diameter 1 7/16 in, Maximum Speed 4,000 RPM, Maximum Torque 10,250 in-lb, Overall Length 3 7/8 in
