  11. Rigid Shaft Coupling, One Piece, 5/8in.

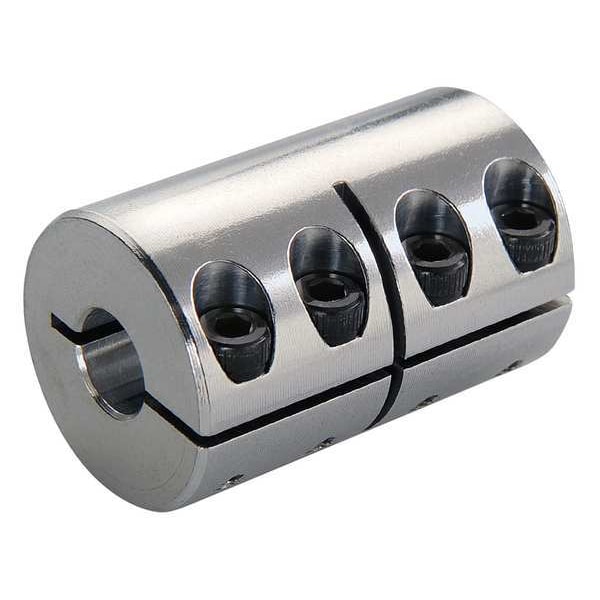

Ruland Rigid Shaft Coupling, One Piece, 5/8in. CLX-10-10-A - main

Rigid Shaft Coupling, One Piece, 5/8in.

  • Mfr # CLX-10-10-A

  • Zoro # G7801622

product price: $53.19
/ea

Key Features

Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Outside Dia.
1 5/16 in
Overall Length
2 in
Finish
Bright
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CLX-10-10-A
Zoro #
G7801622
UPC #
634529003633
Country of Origin
United States

Dimensions

Bore Dia.
5/8 in
Outside Dia.
1 5/16 in
Overall Length
2 in
Screw Size (In.)
#10-32
Clearance Dia. (In.)
1.514
Screw Size
#10-32
Clearance Dia.
1.514 in
Screw Thread Size
#10-32
Clearance Diameter
1.51 in
Bore Diameter 2
5/8 in
Coupling Outside Diameter
1 5/16 in
Minimum Bore Diameter
5/8 in
Maximum Bore Diameter
5/8 mm
Bore Diameter 1
5/8 in
Different Bore Sizes
No

Details

Item
Rigid Shaft Coupling
Shaft Locking Type - Couplings
1 Piece Clamp
System of Measurement
Inch
Material - Couplings
2024 Aluminum
With Keyway / Without Keyway
Without Keyway
Finish
Bright
Item - Rigid Shaft Couplings
Rigid Shaft Coupling
Machined From
Bar Stock
Max. Torque (In.-Lbs.)
1450
Material
2024 Aluminum
Provides
High Torque with No Misalignment Capabilities
Max. RPM
4,000 RPM
Design
Precision Honed Bores On Straight Bore Rigid Couplings, Anti-Vibration Coating Used On Hardware, Bore Tolerance of +.002"/.0005" (+.050mm/+.012mm), Machined From Solid Bar Stock and Sourced Exclusively from North American Mills
Max. Torque
1,450 in-lb
Type
One Piece Clamp Type
Application
Zero Backlash Coupling That is Well Suited for Precise Servo Applications and Shaft to Shaft Connections with No Misalignment
Standards
ANSI, Conflict Minerals Compliant, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.0020 in / +0.0005 in
Screw Material
Alloy Steel
Included Screws
(4) Clamp Screws
Bore Type
Round
Minimum Operating Temperature
-40 Degrees F
Screw Location from Center
0.484 in
Zero Backlash
Yes
Shaft Tolerance
+0.0000 in / -0.0005 in
Features
Precision Honed Bores, Vibration-Resistant Screws
Number of Locking Screws
4
Fastener Tightening Torque
76 lb-in
Coupling Material Grade
2024
Maximum Operating Temperature
225 Degrees F
Coupling Construction
One-Piece
Maximum Torque
1,450 in-lb
Coupling Material Finish
Bright
Maximum Speed
4,000 RPM
Screw Material Finish
Black Oxide
Shaft Locking Type
Clamp On
Coupling Material
Aluminum
Resistance Properties
Corrosion Resistant

Description

Rigid Shaft Coupling, Bore Diameter 1 5/8 in, Bore Diameter 2 5/8 in, Bore Type Round, Clearance Diameter 1.51 in, Coupling Construction One-Piece, Coupling Material Aluminum, Coupling Outside Diameter 1 5/16 in, Different Bore Sizes No, Keyway Depth 1 Not Applicable, Keyway Depth 2 Not Applicable, Minimum Bore Diameter 5/8 in, Keyway Width 1 Not Applicable, Keyway Width 2 Not Applicable, Maximum Bore Diameter 5/8 mm, Maximum Speed 4,000 RPM, Maximum Torque 1,450 in-lb, Overall Length 2 in
