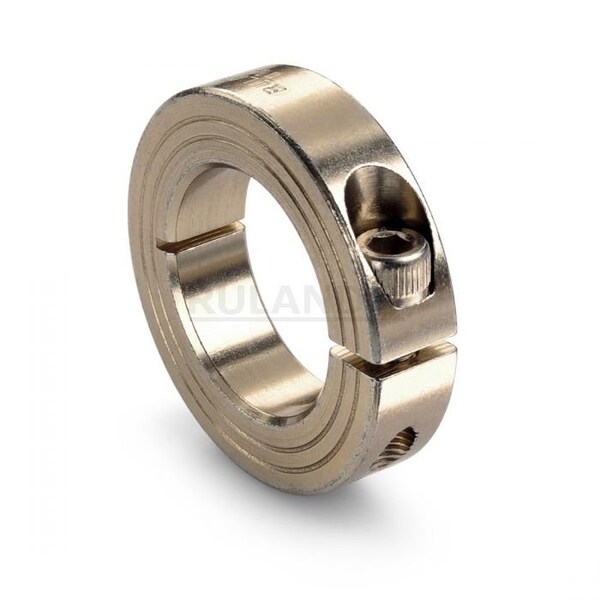

Shaft Collar, Alloy Steel, 1215, Zinc Plated
- Mfr # MCL-17-FZ
- Zoro # G308678953
product price:Â
$
9.19
/ea
Key Features
Number of Pieces
1
Collar Style
Clamp
Screw Size
M5 x 16
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MCL-17-FZ
- Zoro #
- G308678953
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Clamp
- Operating Temp. Range
- -40 Degrees to 350 Degrees F
- Screw Material
- Alloy Steel
- Bore Tolerance
- +0.050/+0.012 mm
- Screw Seating Torque
- 9.5 N-m
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Item
- Shaft Collar
- System of Measurement
- Metric
- Included Screws
- Clamp Screw
- Screw Material Finish
- Zinc Plated
- Collar Material
- Carbon Steel
- Screw Location from Center
- 13.49 mm
- Shaft Tolerance
- +0.000/-0.013 mm
- Collar Construction
- 1-Piece
- Collar Material Grade
- 1215
- Resistance Properties
- Corrosion-Resistant
- Bore Type
- Round
- Collar Material Finish
- Zinc Plated
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 350 Degrees F
- Shaft Locking Type
- Clamp-On
- Weight
- 0.1659 lbs
- Number of Screws
- 1
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 17 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 36 mm, Inside Height to Flat Not Applicable, Clearance Diameter 41.1 mm, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
