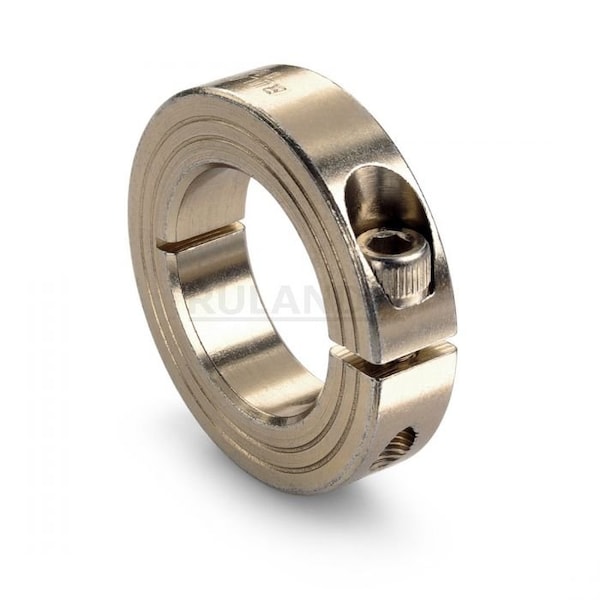

Shaft Collar, Alloy Steel, 34 mm, 13 mm
- Mfr # MCL-16-FZ
- Zoro # G808678958
product price:Â
$
7.99
/ea
Sold in multiples of 2 for
$15.98
Key Features
Number of Pieces
1
Collar Style
Clamp
Screw Size
M5 x 16
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MCL-16-FZ
- Zoro #
- G808678958
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 1
- Collar Style
- Clamp
- Operating Temp. Range
- -40 Degrees to 350 Degrees F
- Screw Material
- Alloy Steel
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Bore Tolerance
- +0.050/+0.012 mm
- Item
- Shaft Collar
- System of Measurement
- Metric
- Screw Seating Torque
- 9.5 N-m
- Shaft Tolerance
- +0.000/-0.013 mm
- Included Screws
- Clamp Screw
- Collar Material Finish
- Zinc Plated
- Collar Construction
- 1-Piece
- Minimum Operating Temperature
- -40 Degrees F
- Resistance Properties
- Corrosion-Resistant
- Screw Material Finish
- Zinc Plated
- Collar Material Grade
- 1215
- Screw Location from Center
- 12.5 mm
- Bore Type
- Round
- Maximum Operating Temperature
- 350 Degrees F
- Shaft Locking Type
- Clamp-On
- Collar Material
- Carbon Steel
- Number of Screws
- 1
- Weight
- 0.148 lbs
Dimensions
- Screw Size
- M5 x 16
- Width Tolerance
- +0.076/-0.254 mm
- Collar Outside Diameter
- 34 mm
- For Shaft Diameter
- 16 mm
- Collar Width
- 13 mm
- Screw Thread Size
- M5x16
- Screw Length
- 16 mm
- Bore Diameter
- 16 mm
- Clearance Diameter
- 39.3 mm
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Clearance Diameter 39.3 mm, Collar Width 13 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
