Shaft Collar, Alloy Steel, -40 Degrees F, M8x25
- Mfr # MSP-60-A
- Zoro # G208672105
product price:Â
$
46.79
/ea
Key Features
Number of Pieces
2
Collar Style
Clamp
Screw Size
M8 x 25
Operating Temp. Range
-40 Degrees to 225 Degrees F
Screw Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MSP-60-A
- Zoro #
- G208672105
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 2
- Collar Style
- Clamp
- Operating Temp. Range
- -40 Degrees to 225 Degrees F
- Screw Material
- Alloy Steel
- Item
- Shaft Collar
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Screw Seating Torque
- 39 N-m
- Bore Tolerance
- +0.050/+0.012 mm
- System of Measurement
- Metric
- Shaft Locking Type
- Clamp-On
- Maximum Operating Temperature
- 225 Degrees F
- Collar Material Finish
- Bright
- Collar Material
- Aluminum
- Screw Location from Center
- 37.01 mm
- Collar Construction
- 2-Piece
- Bore Type
- Round
- Collar Material Grade
- 2024
- Shaft Tolerance
- +0.000/-0.013 mm
- Screw Material Finish
- Black Oxide
- Minimum Operating Temperature
- -40 Degrees F
- Included Screws
- (2) Clamp Screw
- Number of Screws
- 2
- Weight
- 0.3844 lbs
Description

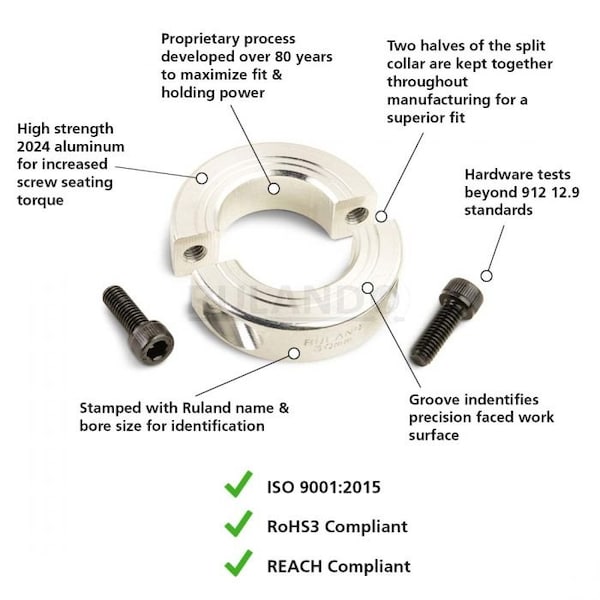

Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 60 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 88 mm, Inside Height to Flat Not Applicable, Clearance Diameter 94 mm, Collar Width 19 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
