  6. Shaft Collar, Alloy Steel, 8 mm, 8 mm

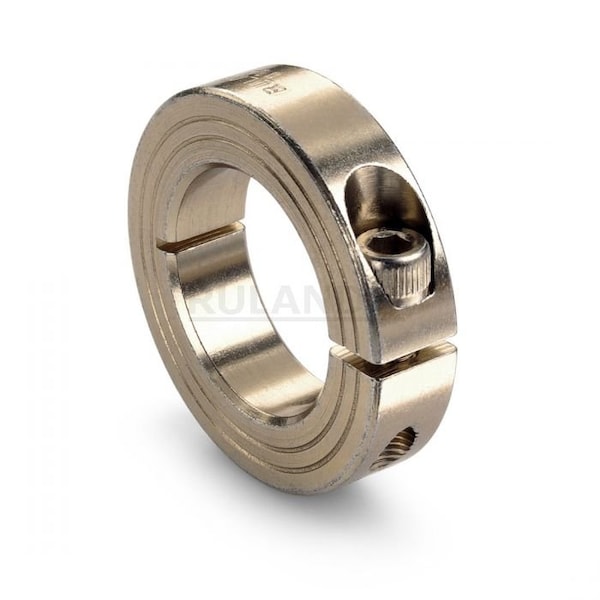

Ruland Shaft Collar, Alloy Steel, 8 mm, 8 mm MCL-8-FZ - main

Shaft Collar, Alloy Steel, 8 mm, 8 mm

  • Mfr # MCL-8-FZ

  • Zoro # G808671959

product price:  $6.39
/ea
Sold in multiples of 2 for $12.78

Key Features

Screw Material
Alloy Steel
Screw Seating Torque
2.1 N-m
Width Tolerance
+0.076/-0.254 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
MCL-8-FZ
Zoro #
G808671959
UPC #
-
Country of Origin
United States

Dimensions

Width Tolerance
+0.076/-0.254 mm
Screw Length
8 mm
Screw Thread Size
M3x8
Bore Diameter
8 mm
Clearance Diameter
22.4 mm
Collar Width
9 mm
Collar Outside Diameter
18 mm
For Shaft Diameter
8 mm
Outside Dia.
18 mm
Bore Dia.
8 mm
Width
9 mm
Screw Size
M3 x 8
Clearance Dia.
22.4 mm

Details

Screw Material
Alloy Steel
Screw Seating Torque
2.1 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Shaft Collar
System of Measurement
Metric
Bore Tolerance
+0.050/+0.012 mm
Collar Construction
1-Piece
Collar Material Grade
1215
Screw Location from Center
6.5 mm
Screw Material Finish
Zinc Plated
Shaft Locking Type
Clamp On
Shaft Tolerance
+0.000/-0.013 mm
Collar Material
Carbon Steel
Maximum Operating Temperature
350 Degrees F
Bore Type
Round
Included Screws
Clamp Screw
Resistance Properties
Corrosion Resistant
Collar Material Finish
Zinc Plated
Minimum Operating Temperature
-40 Degrees F
Number of Pieces
1
Collar Style
Clamp
Weight
0.0287 lbs
Material
1215 Carbon Steel
Operating Temp. Range
-40 Degrees to 350 Degrees F
Finish
Type II, SC2 Zinc Plating with a Yellow "Trivalent" Chromate Conversion Coating
Screw Location (R)
6.50 mm
Number of Screws
1
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Screw Finish
Zinc Plated

Description

Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 8 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 18 mm, Inside Height to Flat Not Applicable, Clearance Diameter 22.4 mm, Collar Width 9 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
