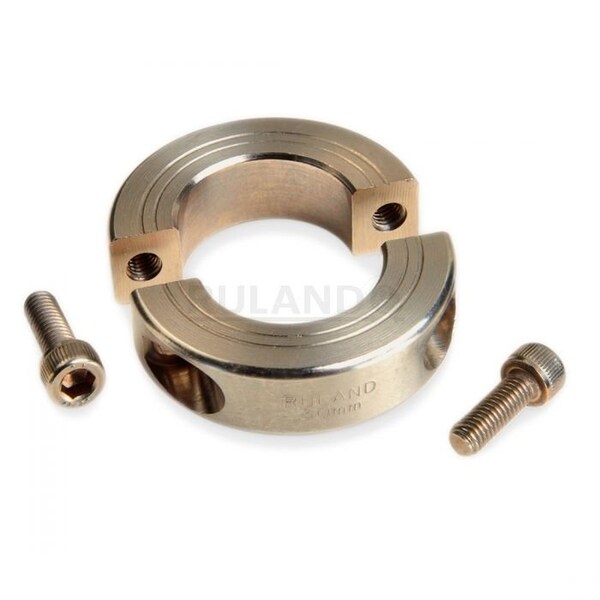

Shaft Collar, Alloy Steel, Round, 350 Degrees F
Mfr # MSP-9-FZ
Zoro # G708673251
product price:Â
$
9.39
/ea
Key Features
Number of Pieces
2
Collar Style
Clamp
Screw Size
M3 x 10
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MSP-9-FZ
- Zoro #
- G708673251
- UPC #
- -
- Country of Origin
- United States
- Number of Pieces
- 2
- Collar Style
- Clamp
- Operating Temp. Range
- -40 Degrees to 350 Degrees F
- Screw Material
- Alloy Steel
- Bore Tolerance
- +0.050/+0.012 mm
- Standards
- Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
- Item
- Shaft Collar
- System of Measurement
- Metric
- Screw Seating Torque
- 2.1 N-m
- Resistance Properties
- Corrosion-Resistant
- Screw Location from Center
- 8.51 mm
- Collar Material
- Carbon Steel
- Screw Material Finish
- Zinc Plated
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 350 Degrees F
- Collar Material Finish
- Zinc Plated
- Collar Construction
- 2-Piece
- Shaft Tolerance
- +0.000/-0.013 mm
- Collar Material Grade
- 1215
- Included Screws
- (2) Clamp Screw
- Shaft Locking Type
- Clamp-On
- Bore Type
- Round
- Weight
- 0.0524 lbs
- Number of Screws
- 2
Description
Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 9 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 24 mm, Inside Height to Flat Not Applicable, Clearance Diameter 26.3 mm, Collar Width 9 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
