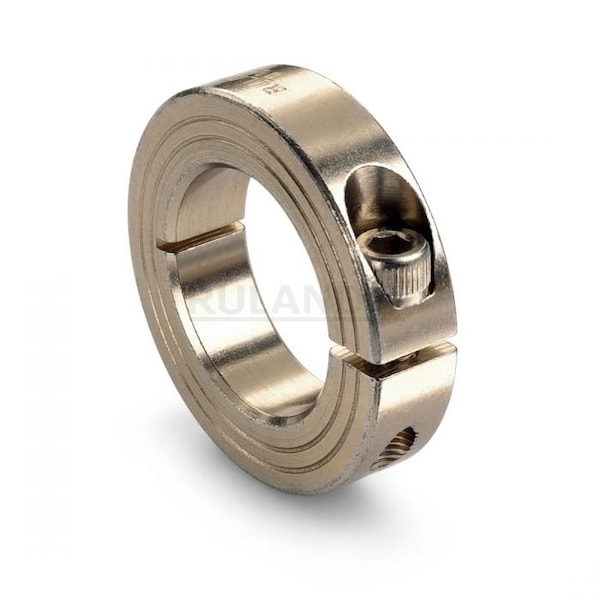

Ruland Shaft Collar, Alloy Steel, Zinc Plated, 19 mm MCL-19-FZ - main

Shaft Collar, Alloy Steel, Zinc Plated, 19 mm

  • Mfr # MCL-19-FZ

  • Zoro # G608678950

product price:  $8.19
/ea

Key Features

Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
40 mm
Width
15 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MCL-19-FZ
Zoro #
G608678950
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
19 mm
Outside Dia.
40 mm
Width
15 mm
Screw Size
M6 x 16
Clearance Dia.
47.4 mm
Width Tolerance
+0.076/-0.254 mm
Clearance Diameter
47.4 mm
Bore Diameter
19 mm
Collar Width
15 mm
Collar Outside Diameter
40 mm
For Shaft Diameter
19 mm
Screw Thread Size
M6x16
Screw Length
16 mm

Details

Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Screw Seating Torque
16 N-m
System of Measurement
Metric
Item
Shaft Collar
Bore Tolerance
+0.050/+0.012 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Location from Center
14.73 mm
Collar Material
Carbon Steel
Minimum Operating Temperature
-40 Degrees F
Collar Material Grade
1215
Maximum Operating Temperature
350 Degrees F
Collar Material Finish
Zinc Plated
Shaft Locking Type
Clamp On
Collar Construction
1-Piece
Included Screws
Clamp Screw
Shaft Tolerance
+0.000/-0.013 mm
Bore Type
Round
Resistance Properties
Corrosion Resistant
Screw Material Finish
Zinc Plated
Screw Finish
Zinc Plated
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Weight
0.2375 lbs
Finish
Type II, SC2 Zinc Plating with a Yellow "Trivalent" Chromate Conversion Coating
Screw Location (R)
14.73 mm
Number of Screws
1

Description

Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 19 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Clearance Diameter 47.4 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
