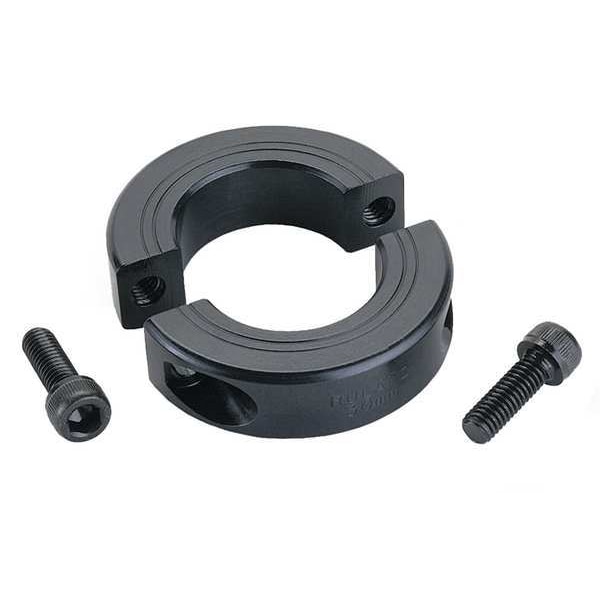

Shaft Collar, Clamp, 2Pc, 1/4 In, Steel
- Mfr # MSP-4E-F
- Zoro # G2823567
product price:Â
$
9.15
/ea
Sold in multiples of 2 for $18.30
Key Features
Number of Pieces
2
Collar Style
Clamp
Screw Size
M3
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MSP-4E-F
- Zoro #
- G2823567
- UPC #
- 634529118238
- Country of Origin
- United States
- Number of Pieces
- 2
- Collar Style
- Clamp
- Operating Temp. Range
- -40 Degrees to 350 Degrees F
- Screw Material
- Alloy Steel
- Item
- Shaft Collar
- System of Measurement
- Metric with Inch Bore
- Standards
- ANSI, Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015, REACH Compliant, RoHS Compliant
- Bore Tolerance
- +0.002/+0.0005 in
- Screw Seating Torque
- 2.1 N-m
- Collar Material
- Carbon Steel
- Included Screws
- (2) Hex Socket Cap Screw
- Shaft Locking Type
- Clamp-On
- Screw Material Finish
- Black Oxide
- Maximum Operating Temperature
- 176 Degrees C
- Minimum Operating Temperature
- -40 Degrees C
- Collar Material Finish
- Black Oxide
- Shaft Tolerance
- +0.0000/-0.0005 in
- Collar Material Grade
- 1215
- Collar Construction
- 2-Piece
- Bore Type
- Round
- Screw Location from Center
- 6.5 mm
- Number of Screws
- 2
- Weight
- 0.0306 lbs
Description
Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1/4 in, Bore Thread Size Not Applicable, Collar Outside Diameter 18 mm, Inside Height to Flat Not Applicable, Clearance Diameter 22.4 mm, Collar Width 9 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
