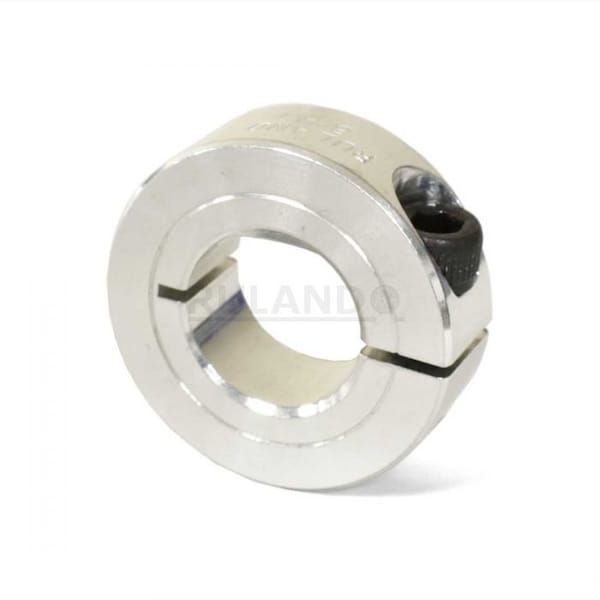

Ruland SHAFT COLLAR D-BORE CLD-4-A - main

SHAFT COLLAR D-BORE

  • Mfr # CLD-4-A

  • Zoro # G408678921

product price:  $18.59
/ea

Key Features

Bore Dia.
0.2500 in
Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CLD-4-A
Zoro #
G408678921
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.2500 in
Outside Dia.
5/8 in
Width
0.281 in
Screw Size
#4-40
Clearance Dia.
0.773 in
Width Tolerance
+0.003/-0.010 in
Bore Diameter
1/4 in
Collar Width
9/32 in
For Shaft Diameter
1/4 in
Inside Height to Flat
0.23 in
Clearance Diameter
0.77 in
Screw Thread Size
#4-40
Collar Outside Diameter
5/8 in

Details

Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 225 Degrees F
Screw Material
Alloy Steel
Item
D-Bore Shaft Collar
System of Measurement
Inch
Bore Tolerance
+0.0020 in / +0.0005 in
Screw Seating Torque
15 lb-in
Standards
ISO 9001:2015 Certified
Distance Across Flats
1/4 in
Shaft Tolerance
+0.0000/-0.0005 in
Bore Type
D
Screw Material Finish
Black Oxide
Collar Material Grade
2024
Maximum Operating Temperature
225 Degrees F
Screw Location from Center
0.21 in
Shaft Locking Type
Clamp On
Collar Material Finish
Bright
Collar Construction
1-Piece
Collar Material
Aluminum
Minimum Operating Temperature
-40 Degrees F
Included Screws
Clamp Screw
Number of Screws
1
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Screw Location (R)
0.210 in
Weight
0.007402 lbs
Flat (F)
0.233 in
Finish
Bright, No Plating
Screw Finish
Black Oxide

Description

D-Bore Shaft Collar, System of Measurement Inch, Bore Type D, Bore Diameter 1/4 in, Bore Thread Size Not Applicable, Collar Outside Diameter 5/8 in, Inside Height to Flat 0.23 in, Clearance Diameter 0.77 in, Collar Width 9/32 in, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
