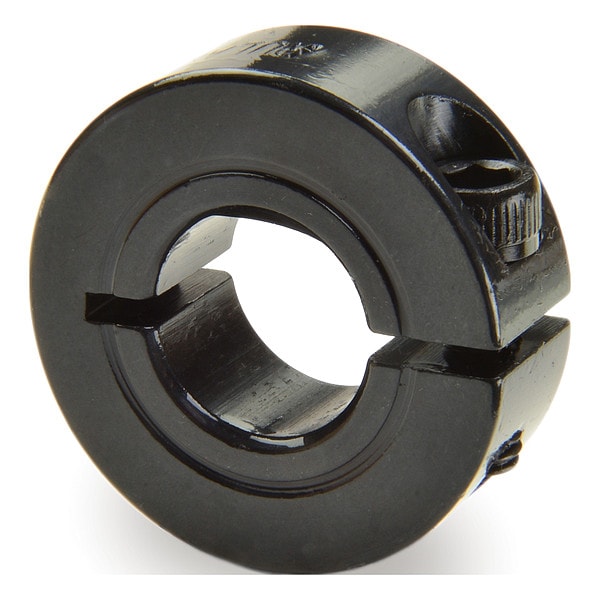

SHAFT COLLAR D-BORE

Mfr # CLD-6-F
Zoro # G308678939

17.19

Key Features

Number of Pieces

Collar Style

Clamp

Screw Size

#6-32

Operating Temp. Range

-40 Degrees to 350 Degrees F

Screw Material

Alloy Steel

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: CLD-6-F
Zoro #: G308678939
UPC #: -
Country of Origin: United States

Dimensions

Screw Size: #6-32
Width Tolerance: +0.003/-0.010 in
Bore Diameter: 3/8 in
For Shaft Diameter: 3/8 in
Screw Thread Size: #6-32
Collar Outside Diameter: 7/8 in
Inside Height to Flat: 0.35 in
Clearance Diameter: 1.03 in
Collar Width: 11/32 in

Details

Number of Pieces: 1
Collar Style: Clamp
Operating Temp. Range: -40 Degrees to 350 Degrees F
Screw Material: Alloy Steel
Distance Across Flats: 3/8 in
Screw Seating Torque: 28 lb-in
Bore Tolerance: +0.0020/+0.0005 in
Item: D-Bore Shaft Collar
Standards: ANSI, Conflict Minerals Compliant, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement: Inch
Collar Construction: 1-Piece
Maximum Operating Temperature: 350 Degrees F
Included Screws: Clamp Screw
Collar Material Finish: Black Oxide
Screw Location from Center: 0.31 in
Collar Material: Carbon Steel
Minimum Operating Temperature: -40 Degrees F
Bore Type: D
Screw Material Finish: Black Oxide
Resistance Properties: Corrosion-Resistant
Shaft Locking Type: Clamp-On
Shaft Tolerance: +0.0000/-0.0005 in
Collar Material Grade: 1215
Number of Screws: 1
Weight: 0.043603 lbs

Description

D-Bore Shaft Collar, System of Measurement Inch, Bore Type D, Bore Diameter 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 7/8 in, Inside Height to Flat 0.35 in, Clearance Diameter 1.03 in, Collar Width 11/32 in, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel
