Shop RULAND

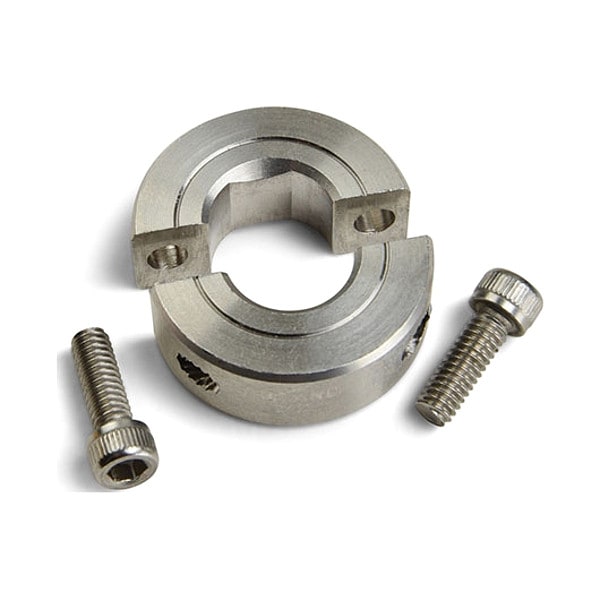

SHAFT COLLAR D-BORE

  • Mfr # SPD-10-SS
  • Zoro # G608673801
product price:
$
35.15
/ea

Key Features

Number of Pieces
2
Collar Style
Clamp
Screw Size
#10-32
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
SPD-10-SS
Zoro #
G608673801
UPC #
-
Country of Origin
United States
Number of Pieces
2
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
Screw Seating Torque
45 lb-in
Bore Tolerance
+0.002/+0.0005 in
Standards
ANSI, ISO 9001:2015 Certified, REACH Compliant, RoHs3 Compliant
Item
D-Bore Shaft Collar
System of Measurement
Inch
Screw Material Finish
Bright
Collar Material
Stainless Steel
Minimum Operating Temperature
-40 Degrees F
Screw Material Grade
18-8 300 Series
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material Grade
303
Screw Location from Center
0.48 in
Collar Construction
2-Piece
Maximum Operating Temperature
350 Degrees F
Shaft Locking Type
Clamp-On
Resistance Properties
Corrosion-Resistant
Collar Material Finish
Bright
Included Screws
(2) Clamp Screw
Bore Type
D
Weight
0.11663 lbs
Number of Screws
2

Description

D-Bore Shaft Collar, System of Measurement Inch, Bore Type D, Bore Diameter 5/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 1 5/16 in, Inside Height to Flat 0.59 in, Clearance Diameter 1.5 in, Collar Width 7/16 in, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Stainless Steel
