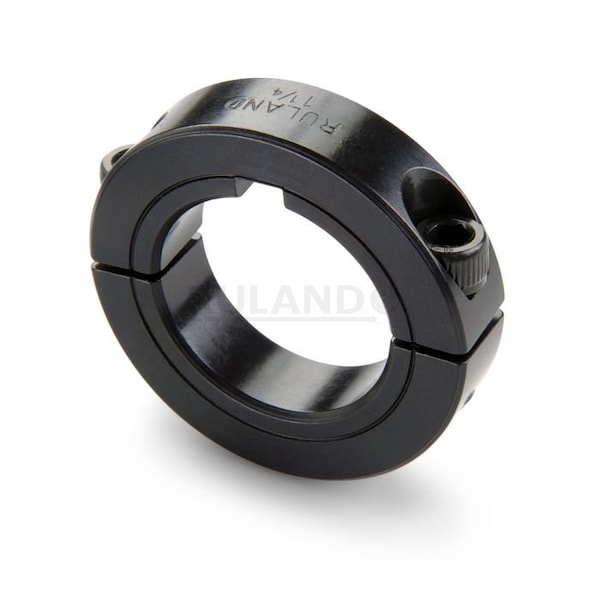

Ruland SHAFT COLLAR KEYED SPK-46-F - main

SHAFT COLLAR KEYED

  • Mfr # SPK-46-F

  • Zoro # G808675063

product price:  $84.15
/ea
Free Shipping & Returns

Key Features

Screw Material
Alloy Steel
System of Measurement
Inch
Width Tolerance
+0.003 in / -0.010 in
Screw Seating Torque
570 lb-in
Standards
ISO 9001:2015 Certified
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
SPK-46-F
Zoro #
G808675063
UPC #
-
Country of Origin
United States

Dimensions

Width Tolerance
+0.003 in / -0.010 in
Keyway Width
3/4 in
Screw Thread Size
3/8"-24
For Shaft Diameter
2 7/8 in
Collar Outside Diameter
4 1/4 in
Keyway Depth
3/8 in
Collar Width
7/8 in
Clearance Diameter
4.5 in
Bore Diameter
2 7/8 in
Clearance Dia.
4.499 in
Screw Size
3/8"-24
Outside Dia.
4 1/4 in
Bore Dia.
2.8750 in
Width
0.875 in

Details

Screw Material
Alloy Steel
Item
Keyed Shaft Collar
System of Measurement
Inch
Screw Seating Torque
570 lb-in
Standards
ISO 9001:2015 Certified
Bore Tolerance
+0.0020 in / +0.0005 in
Collar Material Grade
1215
Shaft Tolerance
+0.0000/-0.0005 in
Collar Construction
2-Piece
Minimum Operating Temperature
-40 Degrees F
Collar Material
Carbon Steel
Screw Location from Center
1.81 in
Shaft Locking Type
Clamp On
Bore Type
Round Keyed
Resistance Properties
Corrosion Resistant
Maximum Operating Temperature
350 Degrees F
Included Screws
(2) Clamp Screw
Screw Material Finish
Black Oxide
Collar Material Finish
Black Oxide
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Weight
1.678466 lbs
Material
1215 Carbon Steel
Number of Screws
2
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Location (R)
1.813 in
Keyway (K)
3/4 in
Screw Finish
Black Oxide
Recommended Shaft Tolerance
+0.0000 in / -0.0010 in
Number of Pieces
2
Collar Style
Clamp Style with Keyway

Description

Keyed Shaft Collar, System of Measurement Inch, Bore Type Round Keyed, Bore Diameter 2 7/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 4 1/4 in, Inside Height to Flat Not Applicable, Clearance Diameter 4.5 in, Collar Width 7/8 in, Collar Material Carbon Steel, Keyway Width 3/4 in, Collar Material Grade 1215, Keyway Depth 3/8 in, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
