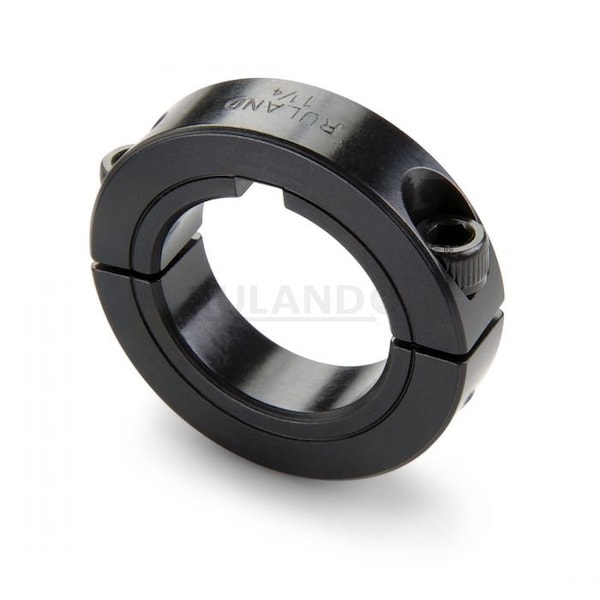

SHAFT COLLAR KEYED

  • Mfr # SPK-47-F

  • Zoro # G408675111

product price:  $88.29
/ea

Key Features

Material
1215 Carbon Steel
Number of Pieces
2
Collar Style
Clamp Style with Keyway
Outside Dia.
4 1/4 in
Width
0.875 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SPK-47-F
Zoro #
G408675111
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
2.9375 in
Outside Dia.
4 1/4 in
Width
0.875 in
Screw Size
3/8"-24
Clearance Dia.
4.499 in
Width Tolerance
+0.003/-0.010 in
Clearance Diameter
4.5 in
Keyway Width
3/4 in
Collar Width
7/8 in
Bore Diameter
2 15/16 in
For Shaft Diameter
2 15/16 in
Keyway Depth
3/8 in
Collar Outside Diameter
4 1/4 in
Screw Thread Size
3/8"-24

Details

Material
1215 Carbon Steel
Number of Pieces
2
Collar Style
Clamp Style with Keyway
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Standards
ANSI, ISO 9001:2015 Certified, REACH Compliant, RoHs3 Compliant
System of Measurement
Inch
Item
Keyed Shaft Collar
Bore Tolerance
+0.002/+0.0005 in
Screw Seating Torque
570 lb-in
Screw Location from Center
1.81 in
Minimum Operating Temperature
-40 Degrees F
Collar Material Finish
Black Oxide
Included Screws
(2) Clamp Screw
Bore Type
Round Keyed
Collar Construction
2-Piece
Screw Material Finish
Black Oxide
Maximum Operating Temperature
350 Degrees F
Collar Material
Carbon Steel
Shaft Tolerance
+0.0000/-0.0005 in
Resistance Properties
Corrosion-Resistant
Shaft Locking Type
Clamp-On
Collar Material Grade
1215
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Screw Location (R)
1.813 in
Weight
1.609588 lbs
Number of Screws
2
Screw Finish
Black Oxide
Keyway (K)
3/4 in
Recommended Shaft Tolerance
+0.0000 in / -0.0010 in

Description

Keyed Shaft Collar, System of Measurement Inch, Bore Type Round Keyed, Bore Diameter 2 15/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 4 1/4 in, Inside Height to Flat Not Applicable, Clearance Diameter 4.5 in, Collar Width 7/8 in, Collar Material Carbon Steel, Keyway Width 3/4 in, Collar Material Grade 1215, Keyway Depth 3/8 in, Thread Direction Not Applicable, Center to Lever Top Not Applicable, Collar Construction 2-Piece, Screw Material Alloy Steel
