  11. Shaft Collar, Mountable, 10mm, Aluminum, Outside Dia.: 24mm

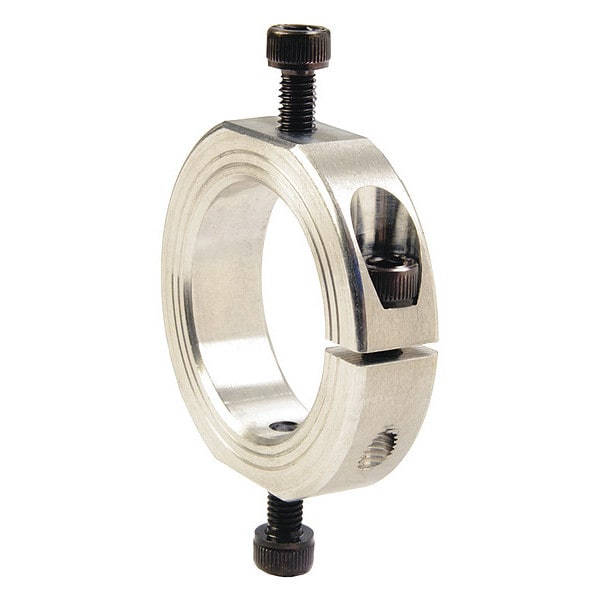

Ruland Shaft Collar, Mountable, 10mm, Aluminum, Outside Dia.: 24mm OF-MCL-10-A - main

Shaft Collar, Mountable, 10mm, Aluminum, Outside Dia.: 24mm

  • Mfr # OF-MCL-10-A

  • Zoro # G7100867

product price: $16.95
/ea

Key Features

Bore Dia.
10 mm
Material
Aluminum
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
24 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OF-MCL-10-A
Zoro #
G7100867
UPC #
634529220856
Country of Origin
United States

Dimensions

Bore Dia.
10 mm
Outside Dia.
24 mm
Dimension Type
Metric
Width
9 mm
Screw Size
M3 x 10
Clearance Dia.
26.3 mm
Width Tolerance
+0.076 mm / -0.254 mm

Details

Material
Aluminum
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40°F to 225°F (-40°C to 107°C)
Screw Material
Alloy Steel
Item
Shaft Collar,Mountable,10mm,Aluminum
Screw Location (R)
8.51 mm
Bore Tolerance
+0.05 mm / +0.012 mm
Distance Across Flats
20 mm
Screw Finish
Black Oxide
Threaded Mounting Hole
M3
Number of Screws
1 ea
Weight
0.0178 lbs
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Screw Seating Torque
2.1 Nm
Style
Round
Flat to Bore (FB)
5 mm
Type
One-Piece

Description

Shaft Collar,Mountable,10mm,Aluminum
