Shop RULAND

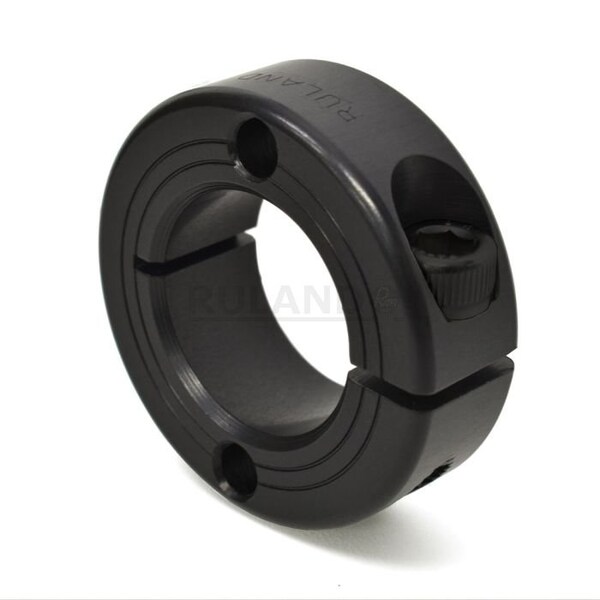

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-10-F

  • Zoro # G808679030

product price:  $8.59
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M3 x 10
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHD-MCL-10-F
Zoro #
G808679030
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M3 x 10
Width Tolerance
+0.076/-0.254 mm
Collar Width
9 mm
Clearance Diameter
26.3 mm
Screw Length
10 mm
Mount Hole Size
3.26 mm
Bore Diameter
10 mm
For Shaft Diameter
10 mm
Collar Outside Diameter
24 mm
Screw Thread Size
M3x10

Details

Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
Screw Seating Torque
2.1 N-m
System of Measurement
Metric
Bore Tolerance
+0.050/+0.012 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Mountable Shaft Collar
Resistance Properties
Corrosion-Resistant
Component Mount Type
Face Mount Holes
Minimum Operating Temperature
-40 Degrees C
Collar Construction
1-Piece
Screw Material Finish
Black Oxide
Collar Material Grade
1215
Collar Material Finish
Black Oxide
Bore Type
Round
Screw Location from Center
8.51 mm
Included Screws
Clamp Screw
Shaft Tolerance
+0.000/-0.013 mm
Collar Material
Carbon Steel
Maximum Operating Temperature
176 Degrees C
Shaft Locking Type
Clamp-On
Number of Screws
1
Weight
0.050463 lbs

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 10 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 24 mm, Inside Height to Flat Not Applicable, Clearance Diameter 26.3 mm, Collar Width 9 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide, Resistance Properties Corrosion-Resistant
