Shop RULAND

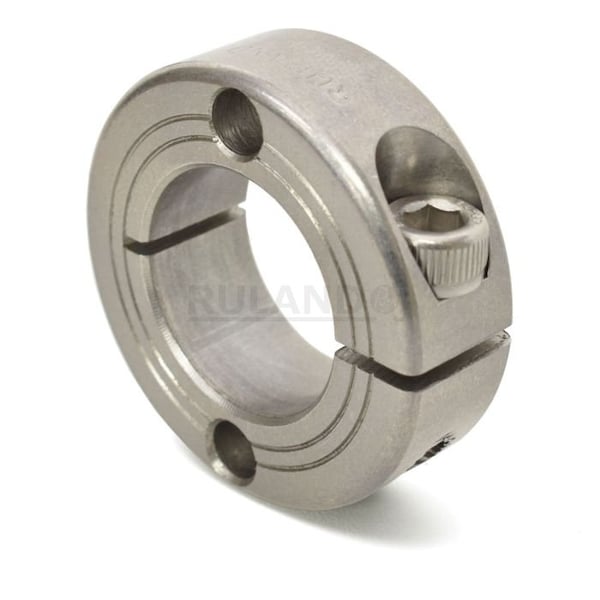

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-10E-SS

  • Zoro # G008679038

product price:  $23.49
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M5
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHD-MCL-10E-SS
Zoro #
G008679038
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M5
Width Tolerance
+0.076/-0.254 mm
Bore Diameter
5/8 in
Collar Width
13 mm
Clearance Diameter
39.3 mm
For Shaft Diameter
5/8 in
Screw Thread Size
M5
Mount Hole Size
5.31 mm
Collar Outside Diameter
34 mm

Details

Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
Bore Tolerance
+0.0020/+0.0005 in
System of Measurement
Metric with Inch Bore
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Item
Mountable Shaft Collar
Screw Seating Torque
5.4 N-m
Component Mount Type
Face Mount Holes
Screw Location from Center
12.5 mm
Collar Construction
1-Piece
Included Screws
Clamp Screw
Screw Material Finish
Bright
Shaft Tolerance
+0.0000/-0.0005 in
Screw Material Grade
18-8 300 Series
Maximum Operating Temperature
176 Degrees C
Collar Material Grade
303
Resistance Properties
Corrosion-Resistant
Collar Material
Stainless Steel
Collar Material Finish
Bright
Minimum Operating Temperature
-40 Degrees C
Shaft Locking Type
Clamp-On
Bore Type
Round
Number of Screws
1
Weight
0.142127 lbs

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 5/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Clearance Diameter 39.3 mm, Collar Width 13 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
