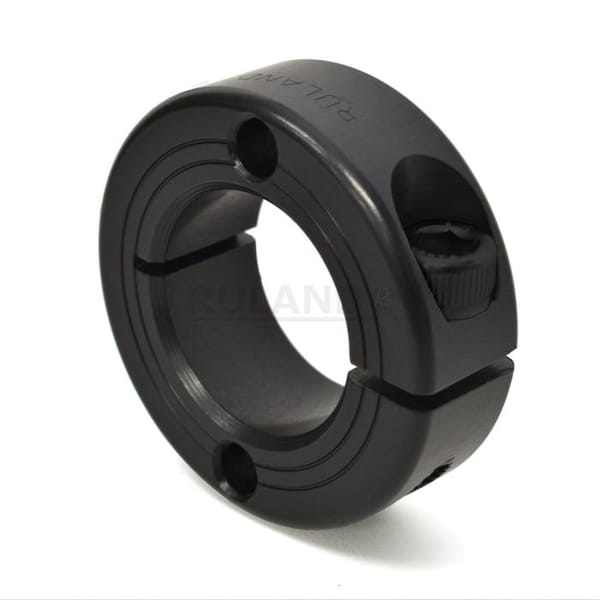

Ruland SHAFT COLLAR MOUNTABLE FHD-MCL-14-F - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-14-F

  • Zoro # G408678891

product price:  $11.39
/ea

Key Features

Bore Dia.
14 mm
Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
30 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHD-MCL-14-F
Zoro #
G408678891
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
14 mm
Outside Dia.
30 mm
Width
11 mm
Screw Size
M4 x 14
Clearance Dia.
33.7 mm
Width Tolerance
+0.076 mm / -0.254 mm
Screw Thread Size
M4x14
Collar Width
11 mm
Collar Outside Diameter
30 mm
For Shaft Diameter
14 mm
Clearance Diameter
33.7 mm
Bore Diameter
14 mm
Mount Hole Size
4.31 mm
Screw Length
14 mm

Details

Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
System of Measurement
Metric
Screw Seating Torque
4.6 Nm
Item
Mountable Shaft Collar
Standards
ISO 9001:2015 Certified
Bore Tolerance
+0.050 mm / +0.012 mm
Maximum Operating Temperature
176 Degrees C
Minimum Operating Temperature
-40 Degrees C
Collar Material
Carbon Steel
Screw Material Finish
Black Oxide
Resistance Properties
Corrosion Resistant
Component Mount Type
Face Mount Holes
Bore Type
Round
Included Screws
Clamp Screw
Shaft Locking Type
Clamp On
Shaft Tolerance
+0.000/-0.013 mm
Screw Location from Center
11 mm
Collar Construction
1-Piece
Collar Material Finish
Black Oxide
Collar Material Grade
1215
Weight
0.09194 lbs
Screw Finish
Black Oxide
Threaded Mounting Hole
4.31 mm
Screw Location (R)
11.00 mm
Number of Screws
1
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 14 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 30 mm, Inside Height to Flat Not Applicable, Clearance Diameter 33.7 mm, Collar Width 11 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide, Resistance Properties Corrosion-Resistant
