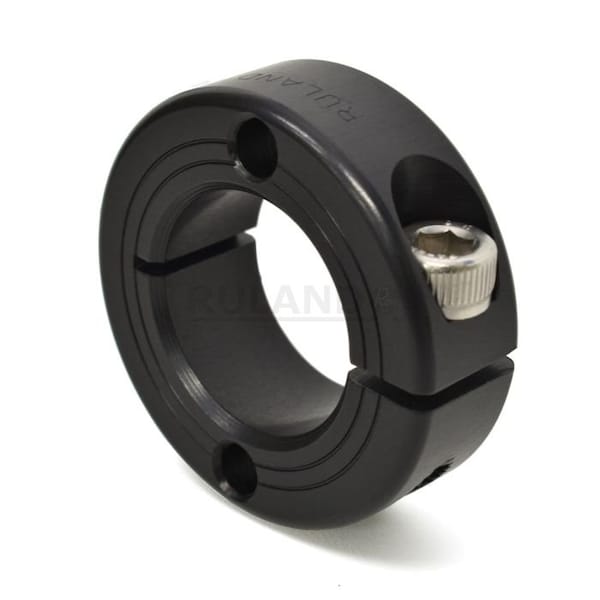

Ruland SHAFT COLLAR MOUNTABLE FHD-MCL-15-AN - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-15-AN

  • Zoro # G308678885

product price:  $23.79
/ea

Key Features

Bore Dia.
15 mm
Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
34 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FHD-MCL-15-AN
Zoro #
G308678885
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
15 mm
Outside Dia.
34 mm
Width
13 mm
Screw Size
M5 x 16
Clearance Dia.
39.3 mm
Width Tolerance
+0.076/-0.254 mm
Clearance Diameter
39.3 mm
Screw Thread Size
M5x16
Collar Width
13 mm
Collar Outside Diameter
34 mm
Mount Hole Size
5.31 mm
Bore Diameter
15 mm
For Shaft Diameter
15 mm
Screw Length
16 mm

Details

Material
2024-T351 Aluminum
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 200 Degrees F
Screw Material
Stainless Steel
System of Measurement
Metric
Item
Mountable Shaft Collar
Screw Seating Torque
5.4 N-m
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Bore Tolerance
+0.050/+0.012 mm
Shaft Tolerance
+0.000/-0.013 mm
Component Mount Type
Face Mount Holes
Bore Type
Round
Collar Material Finish
Anodized
Minimum Operating Temperature
-40 Degrees C
Screw Material Finish
Bright
Resistance Properties
Corrosion Resistant
Shaft Locking Type
Clamp On
Collar Construction
1-Piece
Collar Material
Aluminum
Screw Location from Center
12.5 mm
Screw Material Grade
18-8 300 Series
Collar Material Grade
2024
Maximum Operating Temperature
93 Degrees C
Included Screws
Clamp Screw
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Number of Screws
1
Weight
0.056141 lbs
Threaded Mounting Hole
5.31 mm
Screw Location (R)
12.50 mm
Screw Finish
Bright
Finish
Sulfuric Anodized and Black Anodize

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 15 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Clearance Diameter 39.3 mm, Collar Width 13 mm, Collar Material Aluminum, Keyway Width Not Applicable, Collar Material Grade 2024, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
