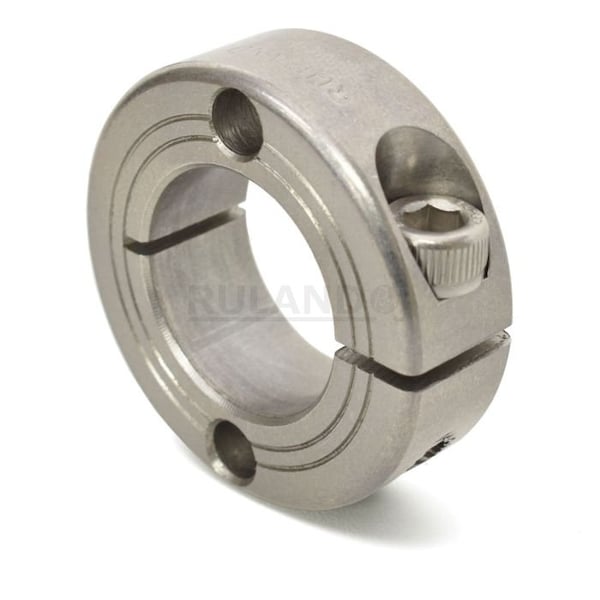

Ruland SHAFT COLLAR MOUNTABLE FHD-MCL-15E-SS - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-15E-SS

  • Zoro # G708678836

product price:  $29.99
/ea

Key Features

Bore Dia.
0.9375 in
Material
303 Stainless Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
45 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FHD-MCL-15E-SS
Zoro #
G708678836
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
0.9375 in
Outside Dia.
45 mm
Width
15 mm
Screw Size
M6
Clearance Dia.
52.1 mm
Width Tolerance
+0.076/-0.254 mm
Mount Hole Size
6.35 mm
For Shaft Diameter
15/16 in
Collar Outside Diameter
45 mm
Collar Width
15 mm
Clearance Diameter
52.1 mm
Bore Diameter
15/16 in
Screw Thread Size
M6

Details

Material
303 Stainless Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
Bore Tolerance
+0.0020/+0.0005 in
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
System of Measurement
Metric with Inch Bore
Screw Seating Torque
9.6 N-m
Item
Mountable Shaft Collar
Component Mount Type
Face Mount Holes
Included Screws
Clamp Screw
Screw Material Finish
Bright
Shaft Tolerance
+0.0000/-0.0005 in
Collar Material Grade
303
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
176 Degrees C
Collar Construction
1-Piece
Collar Material Finish
Bright
Resistance Properties
Corrosion Resistant
Shaft Locking Type
Clamp On
Collar Material
Stainless Steel
Screw Material Grade
18-8 300 Series
Screw Location from Center
17.5 mm
Bore Type
Round
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in
Number of Screws
1
Weight
0.271166 lbs
Threaded Mounting Hole
6.35 mm
Screw Finish
Bright
Finish
Bright, No Plating
Screw Location (R)
17.50 mm

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 15/16 in, Bore Thread Size Not Applicable, Collar Outside Diameter 45 mm, Inside Height to Flat Not Applicable, Clearance Diameter 52.1 mm, Collar Width 15 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright
