Shop RULAND

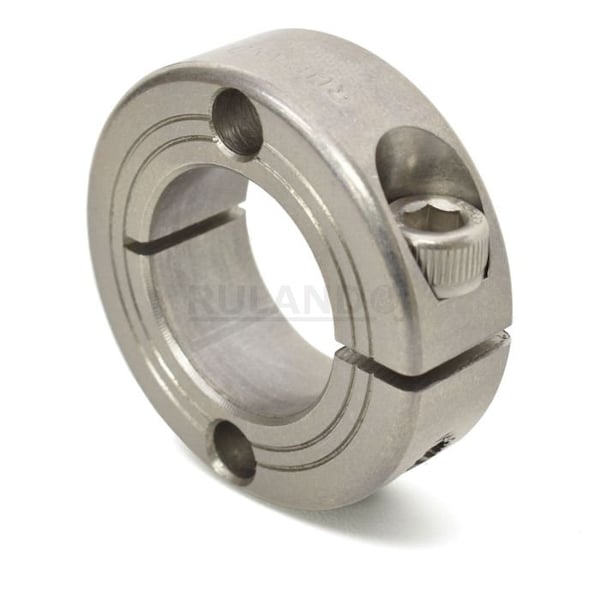

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-16-SS

  • Zoro # G208673188

product price:  $22.39
/ea

Key Features

Number of Pieces
1
Collar Style
Clamp
Screw Size
M5 x 16
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHD-MCL-16-SS
Zoro #
G208673188
UPC #
-
Country of Origin
United States

Dimensions

Screw Size
M5 x 16
Width Tolerance
+0.076/-0.254 mm
Mount Hole Size
5.31 mm
Bore Diameter
16 mm
Collar Width
13 mm
Clearance Diameter
39.3 mm
Screw Length
16 mm
Collar Outside Diameter
34 mm
For Shaft Diameter
16 mm
Screw Thread Size
M5x16

Details

Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Stainless Steel
Screw Seating Torque
5.4 N-m
System of Measurement
Metric
Item
Mountable Shaft Collar
Bore Tolerance
+0.050/+0.012 mm
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Material Grade
18-8 300 Series
Collar Material Finish
Bright
Shaft Tolerance
+0.000/-0.013 mm
Collar Material Grade
303
Collar Construction
1-Piece
Included Screws
Clamp Screw
Screw Material Finish
Bright
Maximum Operating Temperature
176 Degrees C
Component Mount Type
Face Mount Holes
Shaft Locking Type
Clamp-On
Screw Location from Center
12.5 mm
Bore Type
Round
Resistance Properties
Corrosion-Resistant
Collar Material
Stainless Steel
Minimum Operating Temperature
-40 Degrees C
Weight
0.141911 lbs
Number of Screws
1

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 16 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 34 mm, Inside Height to Flat Not Applicable, Clearance Diameter 39.3 mm, Collar Width 13 mm, Collar Material Stainless Steel, Keyway Width Not Applicable, Collar Material Grade 303, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Stainless Steel, Screw Material Finish Bright, Resistance Properties Corrosion-Resistant
