Shop RULAND

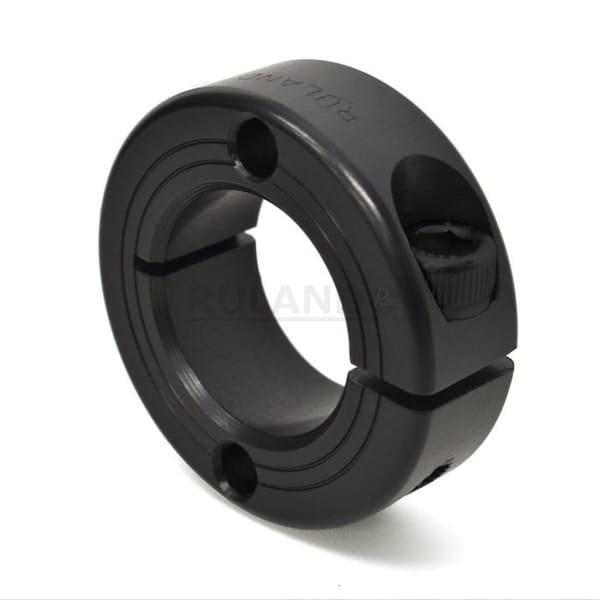

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-20-F

  • Zoro # G908673211

product price:  $11.79
/ea

Key Features

Screw Material
Alloy Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
16 N-m
System of Measurement
Metric
Width Tolerance
+0.076/-0.254 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHD-MCL-20-F
Zoro #
G908673211
UPC #
-
Country of Origin
United States

Dimensions

Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M6x16
Collar Width
15 mm
Screw Length
16 mm
Clearance Diameter
47.4 mm
Bore Diameter
20 mm
Mount Hole Size
6.35 mm
Collar Outside Diameter
40 mm
For Shaft Diameter
20 mm
Screw Size
M6 x 16

Details

Screw Material
Alloy Steel
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Screw Seating Torque
16 N-m
System of Measurement
Metric
Item
Mountable Shaft Collar
Bore Tolerance
+0.050/+0.012 mm
Maximum Operating Temperature
176 Degrees C
Bore Type
Round
Minimum Operating Temperature
-40 Degrees C
Collar Material Grade
1215
Included Screws
Clamp Screw
Shaft Tolerance
+0.000/-0.013 mm
Collar Material
Carbon Steel
Collar Construction
1-Piece
Component Mount Type
Face Mount Holes
Shaft Locking Type
Clamp-On
Screw Material Finish
Black Oxide
Screw Location from Center
14.73 mm
Collar Material Finish
Black Oxide
Resistance Properties
Corrosion-Resistant
Operating Temp. Range
-40 Degrees to 350 Degrees F
Number of Screws
1
Weight
0.213562 lbs
Collar Style
Clamp
Number of Pieces
1

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 20 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 40 mm, Inside Height to Flat Not Applicable, Clearance Diameter 47.4 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide, Resistance Properties Corrosion-Resistant
