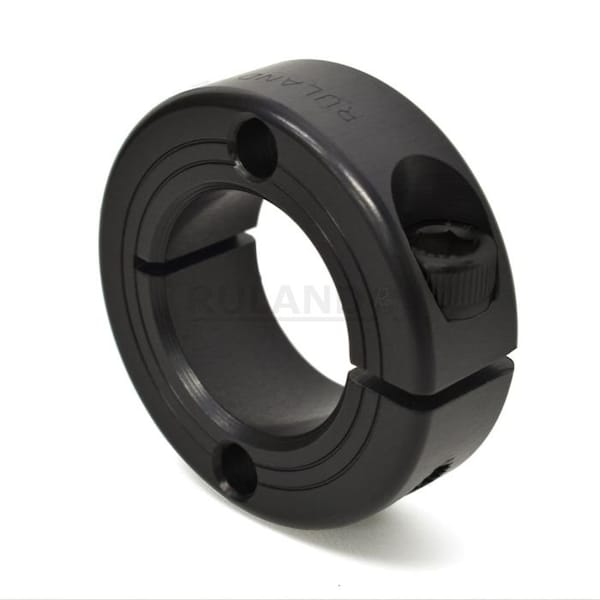

Ruland SHAFT COLLAR MOUNTABLE FHD-MCL-22-F - main

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-22-F

  • Zoro # G908673228

product price:  $12.39
/ea

Key Features

Screw Material
Alloy Steel
Standards
ISO 9001:2015 Certified
Screw Seating Torque
16 Nm
System of Measurement
Metric
Bore Tolerance
+0.050 mm / +0.012 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
FHD-MCL-22-F
Zoro #
G908673228
UPC #
-
Country of Origin
United States

Dimensions

Width Tolerance
+0.076 mm / -0.254 mm
Screw Length
16 mm
For Shaft Diameter
22 mm
Bore Diameter
22 mm
Screw Thread Size
M6x16
Mount Hole Size
6.35 mm
Clearance Diameter
49.5 mm
Collar Width
15 mm
Collar Outside Diameter
42 mm
Outside Dia.
42 mm
Width
15 mm
Bore Dia.
22 mm
Clearance Dia.
49.5 mm
Screw Size
M6 x 16

Details

Screw Material
Alloy Steel
Standards
ISO 9001:2015 Certified
Item
Mountable Shaft Collar
Screw Seating Torque
16 Nm
System of Measurement
Metric
Bore Tolerance
+0.050 mm / +0.012 mm
Minimum Operating Temperature
-40 Degrees C
Component Mount Type
Face Mount Holes
Screw Material Finish
Black Oxide
Collar Material
Carbon Steel
Resistance Properties
Corrosion Resistant
Collar Material Finish
Black Oxide
Shaft Tolerance
+0.000/-0.013 mm
Shaft Locking Type
Clamp On
Bore Type
Round
Collar Material Grade
1215
Collar Construction
1-Piece
Included Screws
Clamp Screw
Screw Location from Center
16 mm
Maximum Operating Temperature
176 Degrees C
Operating Temp. Range
-40 Degrees to 350 Degrees F
Weight
0.229459 lbs
Threaded Mounting Hole
6.35 mm
Material
1215 Carbon Steel
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Recommended Shaft Tolerance
+0.000 mm / -0.013 mm
Screw Location (R)
16.00 mm
Screw Finish
Black Oxide
Number of Pieces
1
Collar Style
Clamp
Number of Screws
1

Description

Mountable Shaft Collar, System of Measurement Metric, Bore Type Round, Bore Diameter 22 mm, Bore Thread Size Not Applicable, Collar Outside Diameter 42 mm, Inside Height to Flat Not Applicable, Clearance Diameter 49.5 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide, Resistance Properties Corrosion-Resistant
