Shop RULAND

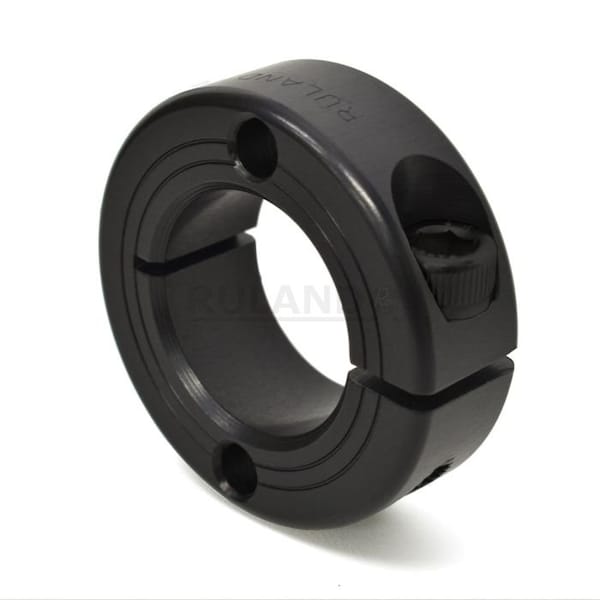

SHAFT COLLAR MOUNTABLE

  • Mfr # FHD-MCL-22E-F

  • Zoro # G408673209

product price:  $18.59
/ea

Key Features

Bore Dia.
1.3750 in
Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Outside Dia.
57 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FHD-MCL-22E-F
Zoro #
G408673209
UPC #
-
Country of Origin
United States

Dimensions

Bore Dia.
1.3750 in
Outside Dia.
57 mm
Width
15 mm
Screw Size
M6
Clearance Dia.
62.4 mm
Width Tolerance
+0.076/-0.254 mm
Screw Thread Size
M6
Collar Outside Diameter
57 mm
Mount Hole Size
6.35 mm
Clearance Diameter
62.4 mm
For Shaft Diameter
1 3/8 in
Bore Diameter
1 3/8 in
Collar Width
15 mm

Details

Material
1215 Carbon Steel
Number of Pieces
1
Collar Style
Clamp
Operating Temp. Range
-40 Degrees to 350 Degrees F
Screw Material
Alloy Steel
System of Measurement
Metric with Inch Bore
Screw Seating Torque
16 N-m
Bore Tolerance
+0.0020/+0.0005 in
Item
Mountable Shaft Collar
Standards
Conflict Minerals Compliant, DIN 912 12.9, ISO 9001:2015 Certified, REACH Compliant, RoHS3 Compliant
Included Screws
Clamp Screw
Minimum Operating Temperature
-40 Degrees C
Component Mount Type
Face Mount Holes
Collar Material Grade
1215
Resistance Properties
Corrosion-Resistant
Bore Type
Round
Screw Material Finish
Black Oxide
Shaft Locking Type
Clamp-On
Collar Material
Carbon Steel
Collar Construction
1-Piece
Shaft Tolerance
+0.0000/-0.0005 in
Maximum Operating Temperature
176 Degrees C
Screw Location from Center
23.24 mm
Collar Material Finish
Black Oxide
Threaded Mounting Hole
6.35 mm
Finish
Hot Process Black Oxide, Impregnated with Naphthenic Oil, Centrifugally Dried
Screw Finish
Black Oxide
Screw Location (R)
23.24 mm
Number of Screws
1
Weight
0.37539 lbs
Recommended Shaft Tolerance
+0.0000 in / -0.0005 in

Description

Mountable Shaft Collar, System of Measurement Metric with Inch Bore, Bore Type Round, Bore Diameter 1 3/8 in, Bore Thread Size Not Applicable, Collar Outside Diameter 57 mm, Inside Height to Flat Not Applicable, Clearance Diameter 62.4 mm, Collar Width 15 mm, Collar Material Carbon Steel, Keyway Width Not Applicable, Collar Material Grade 1215, Keyway Depth Not Applicable, Collar Construction 1-Piece, Screw Material Alloy Steel, Screw Material Finish Black Oxide
